5 relays in the 12v panel?

pcmpetepcmpete Member Posts: 114 ✭✭
edited September 2025 in Electrical Discussions

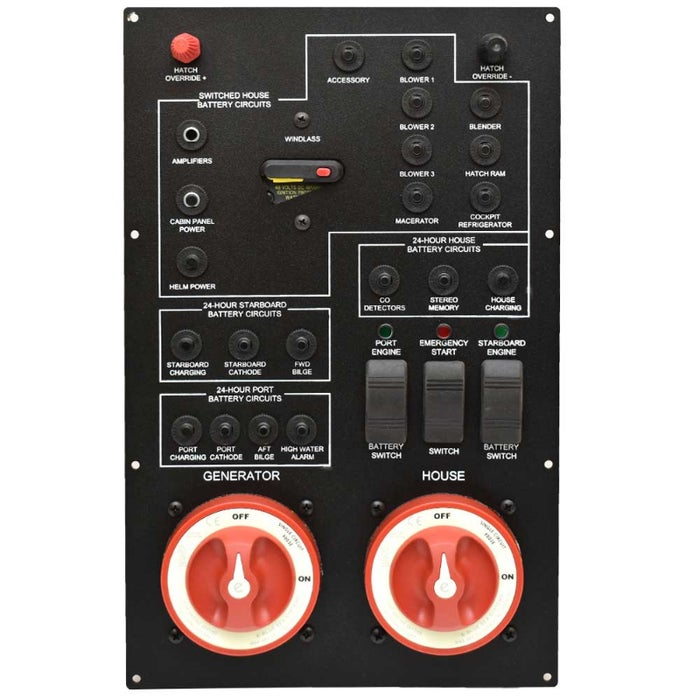

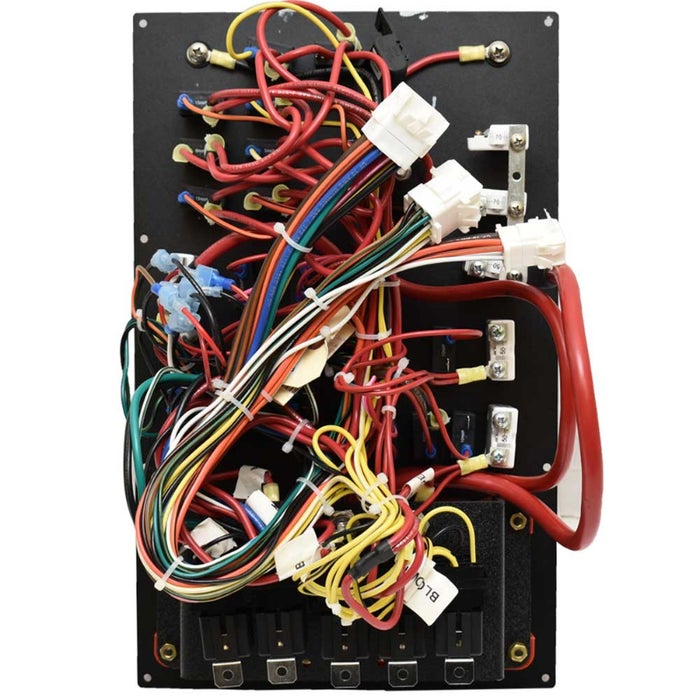

Does anyone know what these 5 relays control in the 12v panel?
they are the 5 across the bottom

· Share on Facebook

Comments

  • LaReaLaRea Member, Moderator Posts: 8,057 mod
    Some boats have relays and diodes for the hatch override posts at the top.
    · Share on Facebook
  • Dream_InnDream_Inn Member, Moderator Posts: 7,919 mod
    On mine, 2 are for up/down of engine hatch.  The other 3 are for the blowers.

    Dream 'Inn III -- 2008 400 Express

    · Share on Facebook
  • pcmpetepcmpete Member Posts: 114 ✭✭
    edited September 2025
    hmmmm, now I am really confused, I thought they had something to do with the remote battery switches,  My port remote battery switch will only turn off, and the switch itself is a on-off-on type switch, that is why I thought relays were involved..   Back to tracing wires for me.......
    Post edited by pcmpete on
    · Share on Facebook
  • aero3113aero3113 Member Posts: 9,759 ✭✭✭✭✭
    It’s possible that the switch failed.
    2008 330EC
    · Share on Facebook
  • YYZRCYYZRC Member Posts: 5,396 ✭✭✭✭✭
    edited September 2025
    I had to replace one of the rocker switches for the remote battery switch as it failed. Maybe try swapping the port and starboard rocker switches. They just pull out.
    2008 350 EC on Georgian Bay
    · Share on Facebook
  • pcmpetepcmpete Member Posts: 114 ✭✭
     Bought a new switch.  Did not fix it.  Why would a on-off operation have an on-off-on switch?
    · Share on Facebook
  • rasburyrasbury Member Posts: 8,925 ✭✭✭✭✭
    Maybe I missed it, but what switch has failed? Power? Breaker?
    · Share on Facebook
  • pcmpetepcmpete Member Posts: 114 ✭✭
    the Power switch failed, BEP 722.  I replaced with a BEP MARINE 701-MD Remote Operated Battery Switch
    · Share on Facebook
  • rasburyrasbury Member Posts: 8,925 ✭✭✭✭✭
    edited October 2025
    So you figured out the on/off/on for the switch. These bigger boats if you are just getting started are a handful! I have 8600 babbling post over like 10 years- would not have made it without this forum.
    · Share on Facebook
