  • aero3113aero3113 Member Posts: 9,838 ✭✭✭✭✭
    Now I want to go remove and clean my trim pumps! I’ve been actually wanting to do it for a while. Would be nice to empty the reservoirs and put fresh fluid in.
    2008 330EC
    · Share on Facebook
  • YYZRCYYZRC Member Posts: 5,461 ✭✭✭✭✭
    Donations accepted and appreciated.

    Naming rights are also available for purchase.
    2006 390 EC
    2008 350 EC
    Georgian Bay
    · Share on Facebook
  • YYZRCYYZRC Member Posts: 5,461 ✭✭✭✭✭
    edited September 1

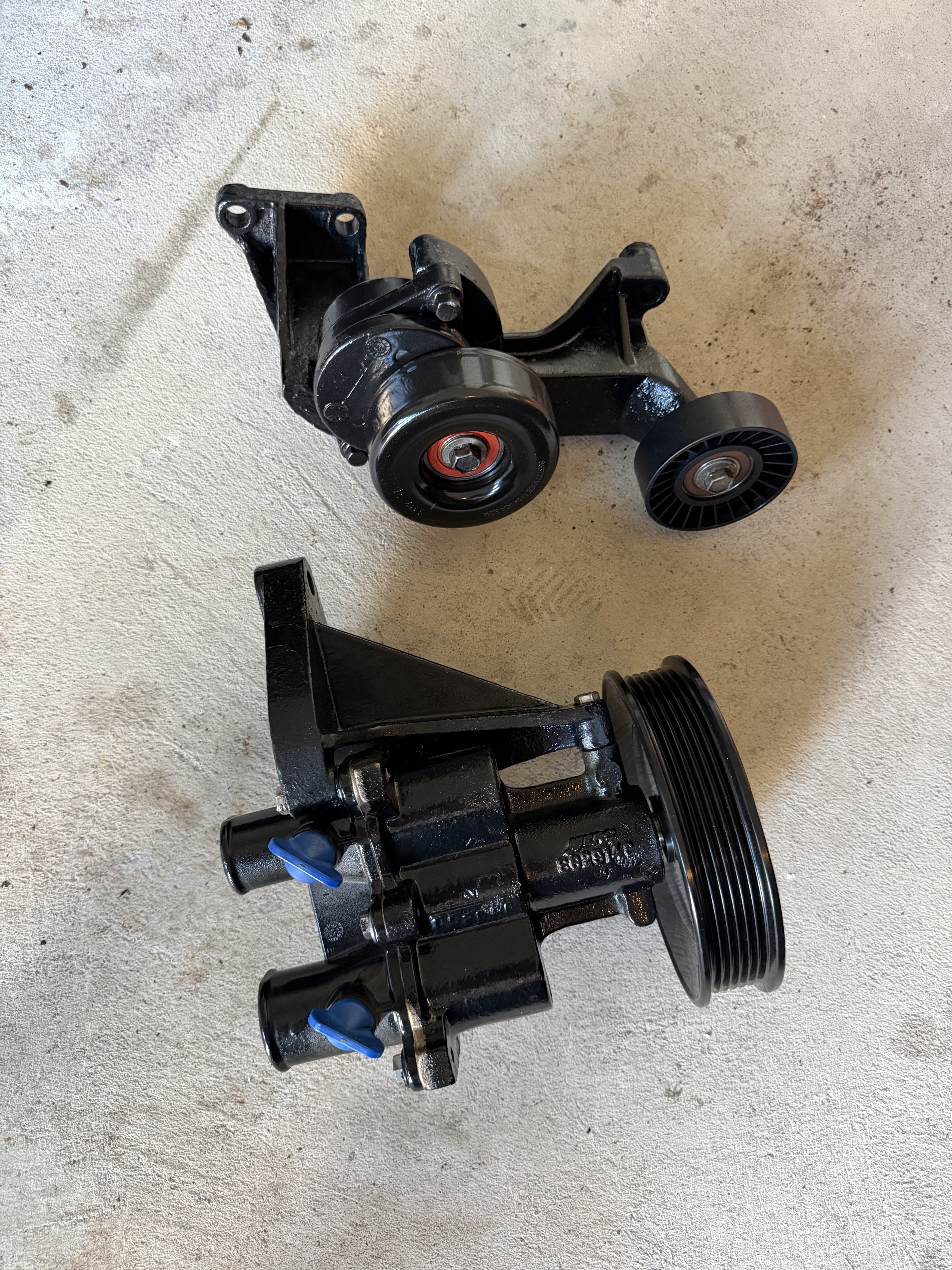

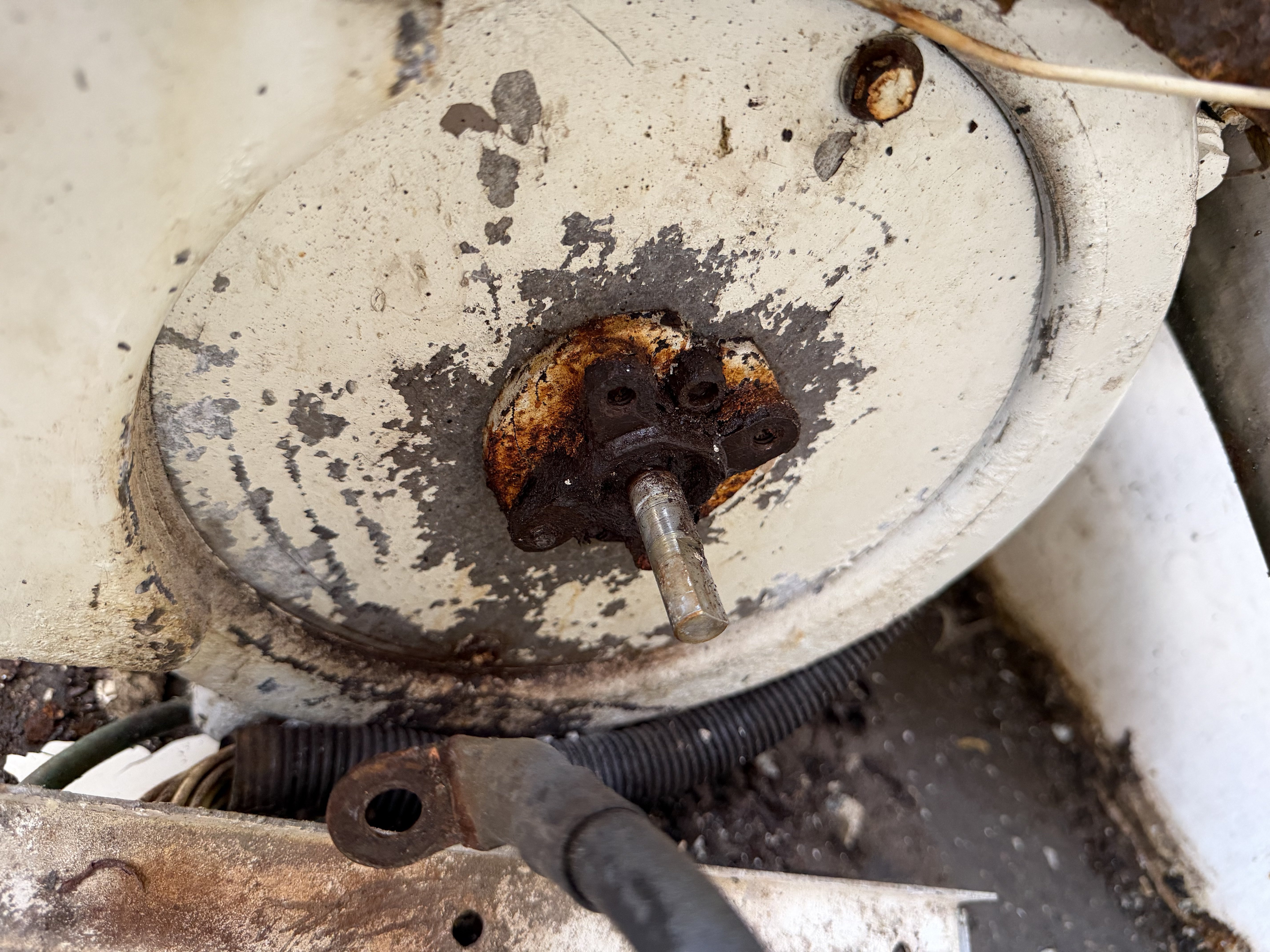

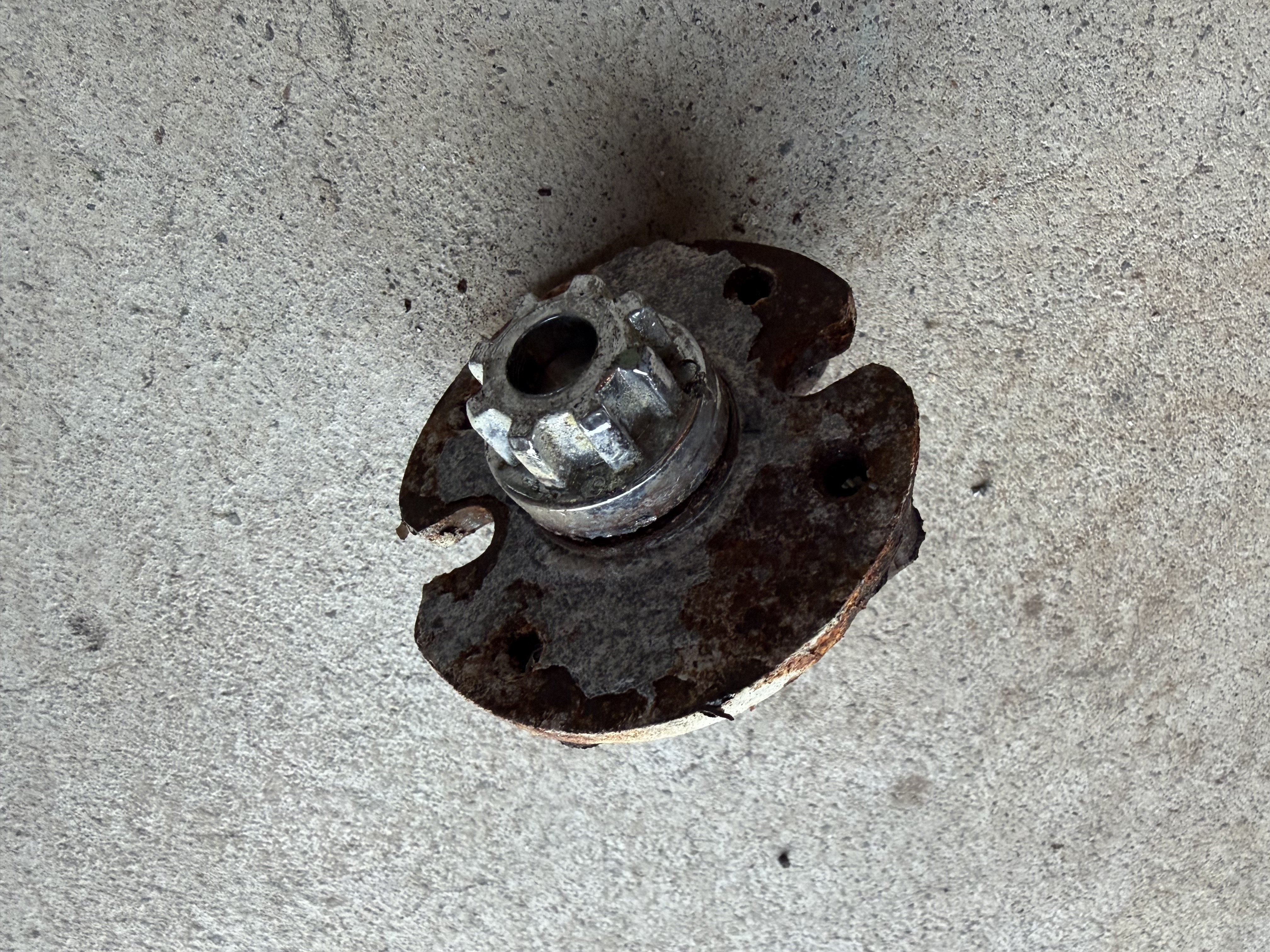

    Naturally every pulley and bracket is rusted beyond recognition, so lots of wire brushing + POR15. Some new pulleys as well.

    Rebuilt sea water pumps with air drain delete.


    2006 390 EC
    2008 350 EC
    Georgian Bay
    · Share on Facebook
  • Dream_InnDream_Inn Member, Moderator Posts: 7,945 mod
    @YYZRC So, for the POR15, do you use the rust remover or just a paint?

    Dream 'Inn III -- 2008 400 Express

    · Share on Facebook
  • YYZRCYYZRC Member Posts: 5,461 ✭✭✭✭✭
    edited September 1

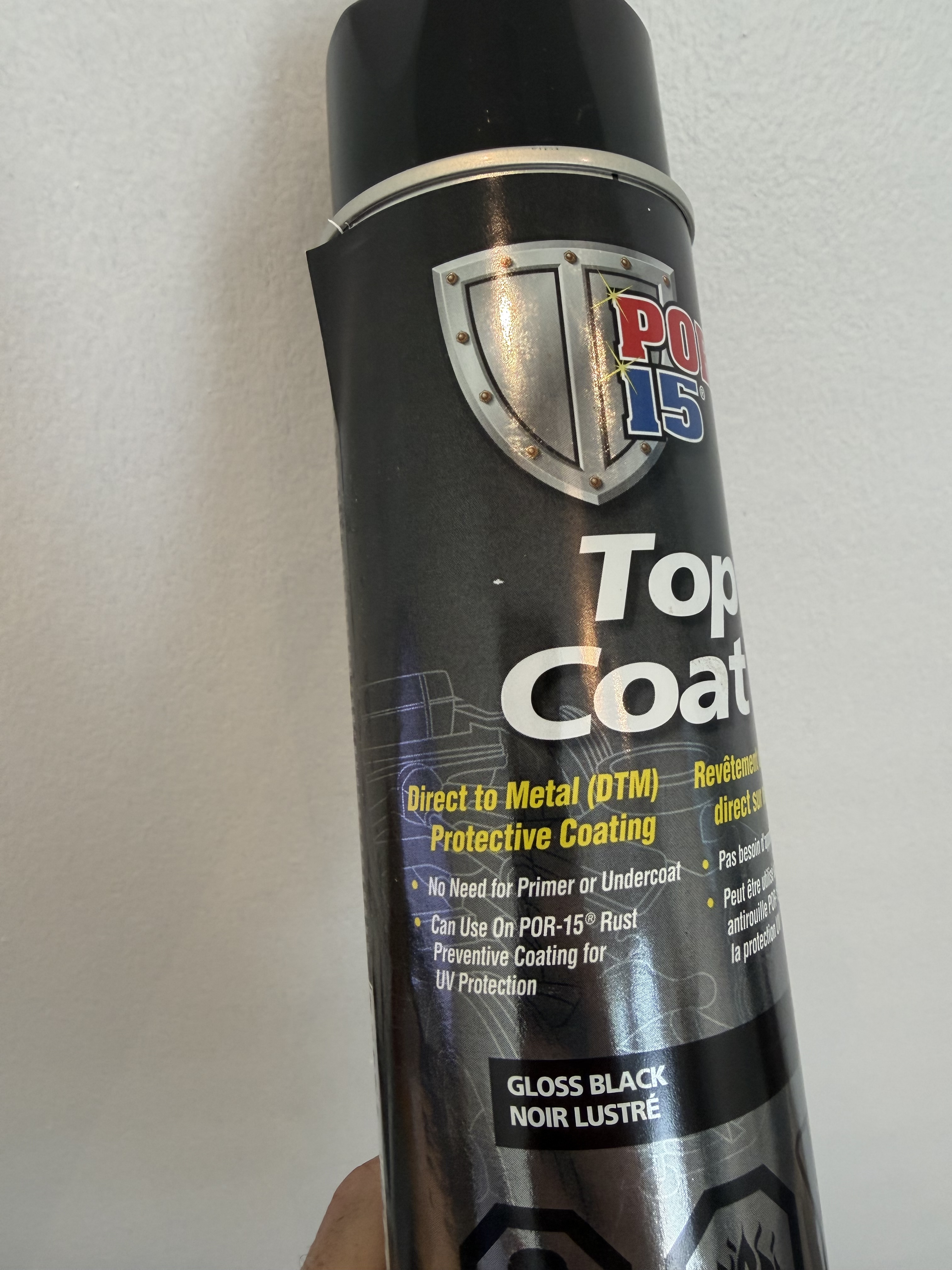

    @Dream_Inn I am using POR15 top coat after attacking the rust with a wire wheel drill attachment.

    I used the same top coat on my outdrives last year and was very happy with the durability underwater all season (5 months). Not sure how well it will work on the rust but it can’t be worse than the OEM Merc paint spray cans. That stuff was junk.


    2006 390 EC
    2008 350 EC
    Georgian Bay
    · Share on Facebook
  • MarkBMarkB Member Posts: 4,009 ✭✭✭✭✭
    YYZRC said:
    Also wanted to share this 10/10 splice. @LaRea sweet dreams!!


    Please tell me that's ground, please, please ... wow, wow, wow.

    Boat Name: King Kong

    "Boat + Water = Fun"

    · Share on Facebook
  • YYZRCYYZRC Member Posts: 5,461 ✭✭✭✭✭

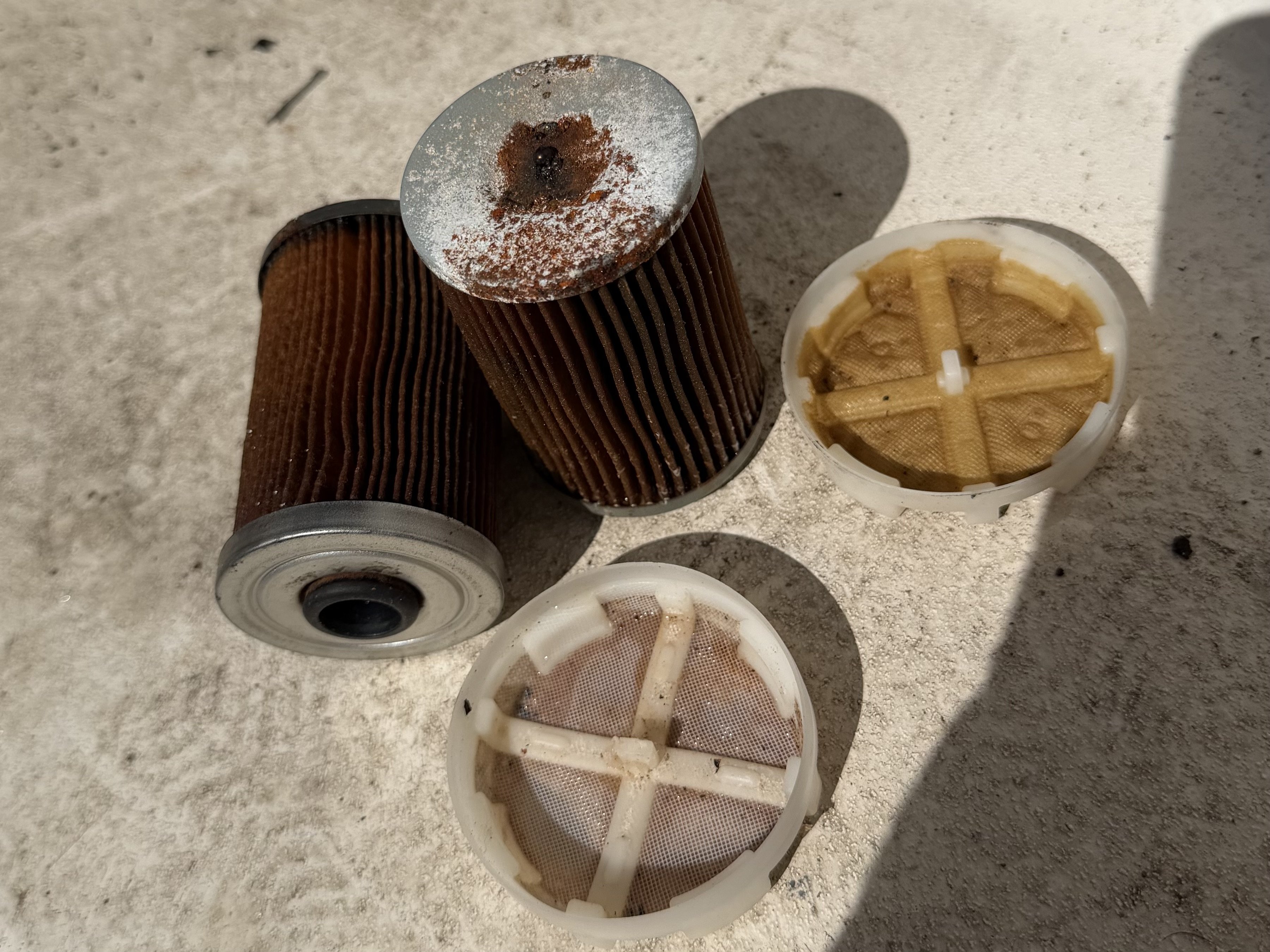

    Cool fuel filters. Probably could have got another season out of them.



    Painted the brackets and flushed the cooling line.


    2006 390 EC
    2008 350 EC
    Georgian Bay
    · Share on Facebook
  • aero3113aero3113 Member Posts: 9,838 ✭✭✭✭✭

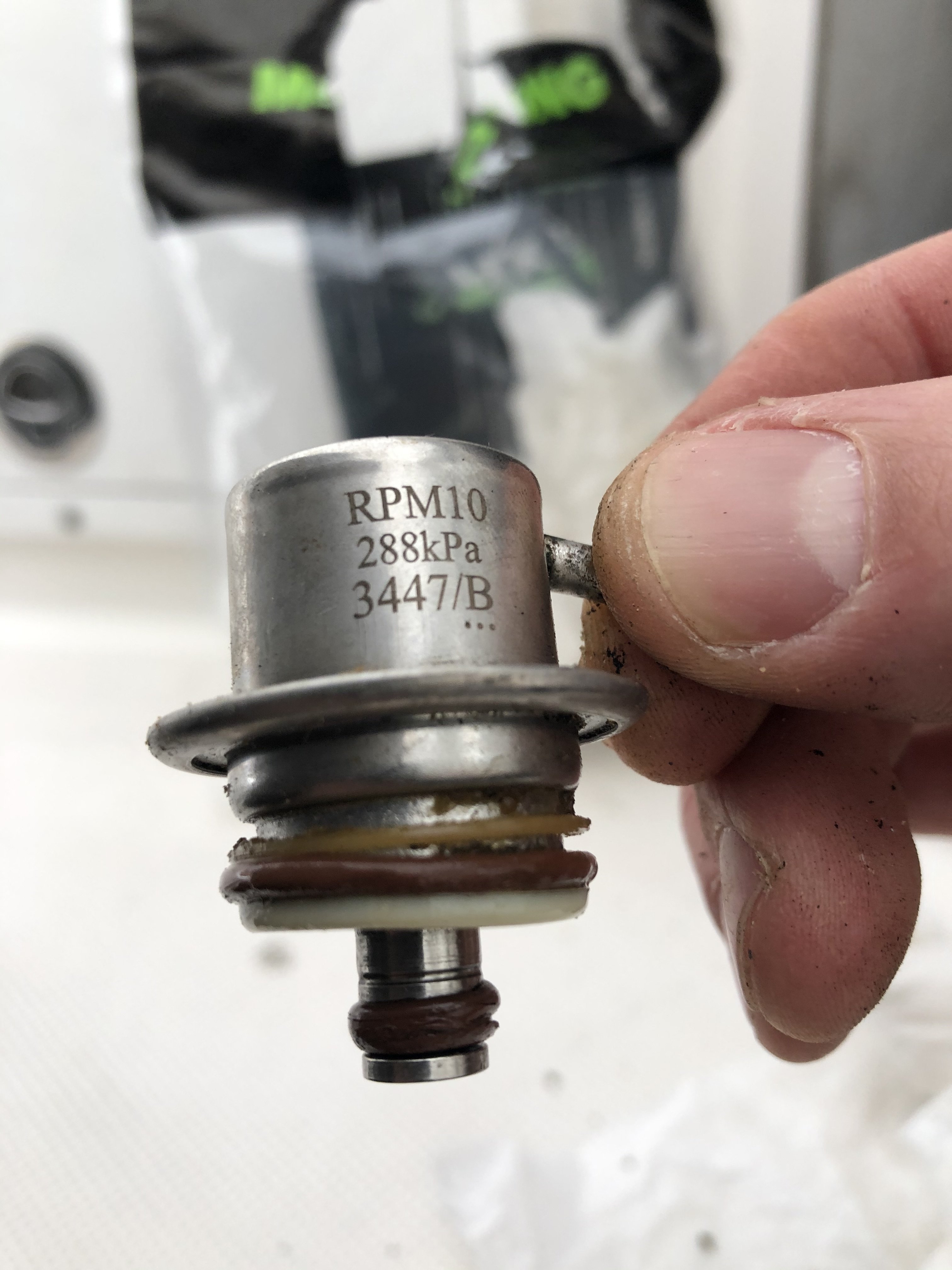

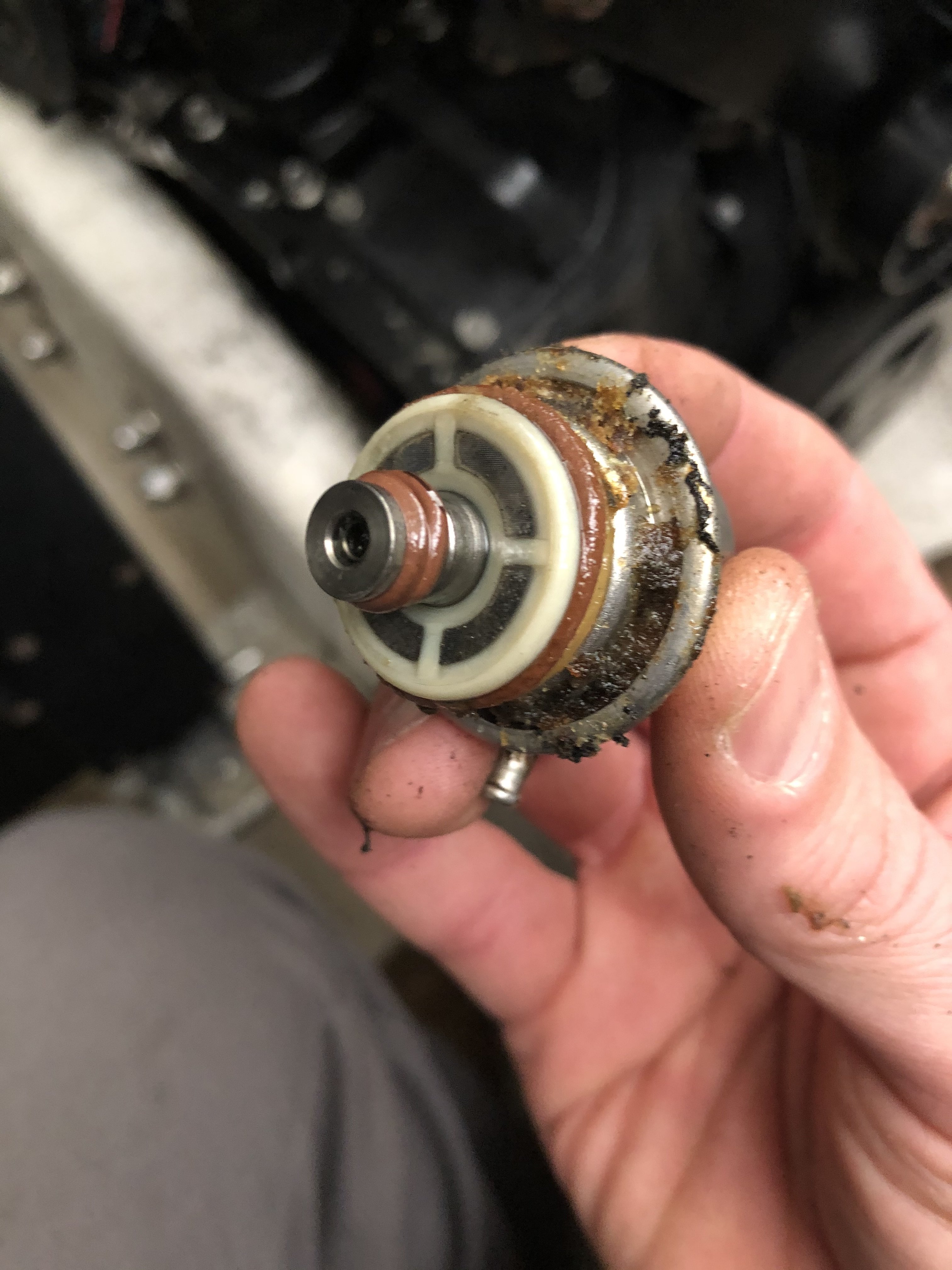

    @YYZRC check the regulator filter also. Probably won’t see any paint but with that corrosion on the filter, it’s possible it made it up there.
    2008 330EC
    · Share on Facebook
  • aero3113aero3113 Member Posts: 9,838 ✭✭✭✭✭

    2008 330EC
    · Share on Facebook
  • YYZRCYYZRC Member Posts: 5,461 ✭✭✭✭✭

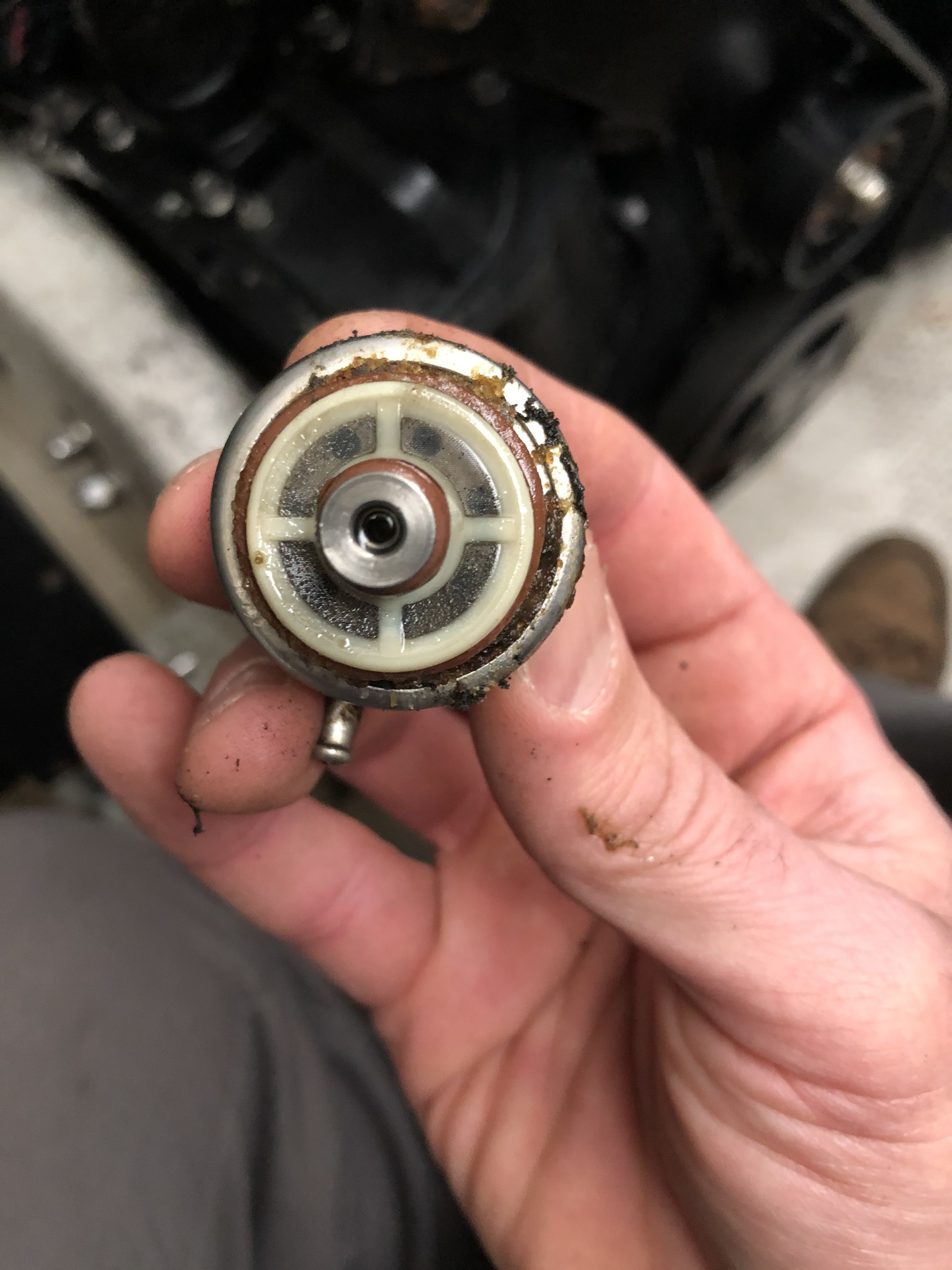

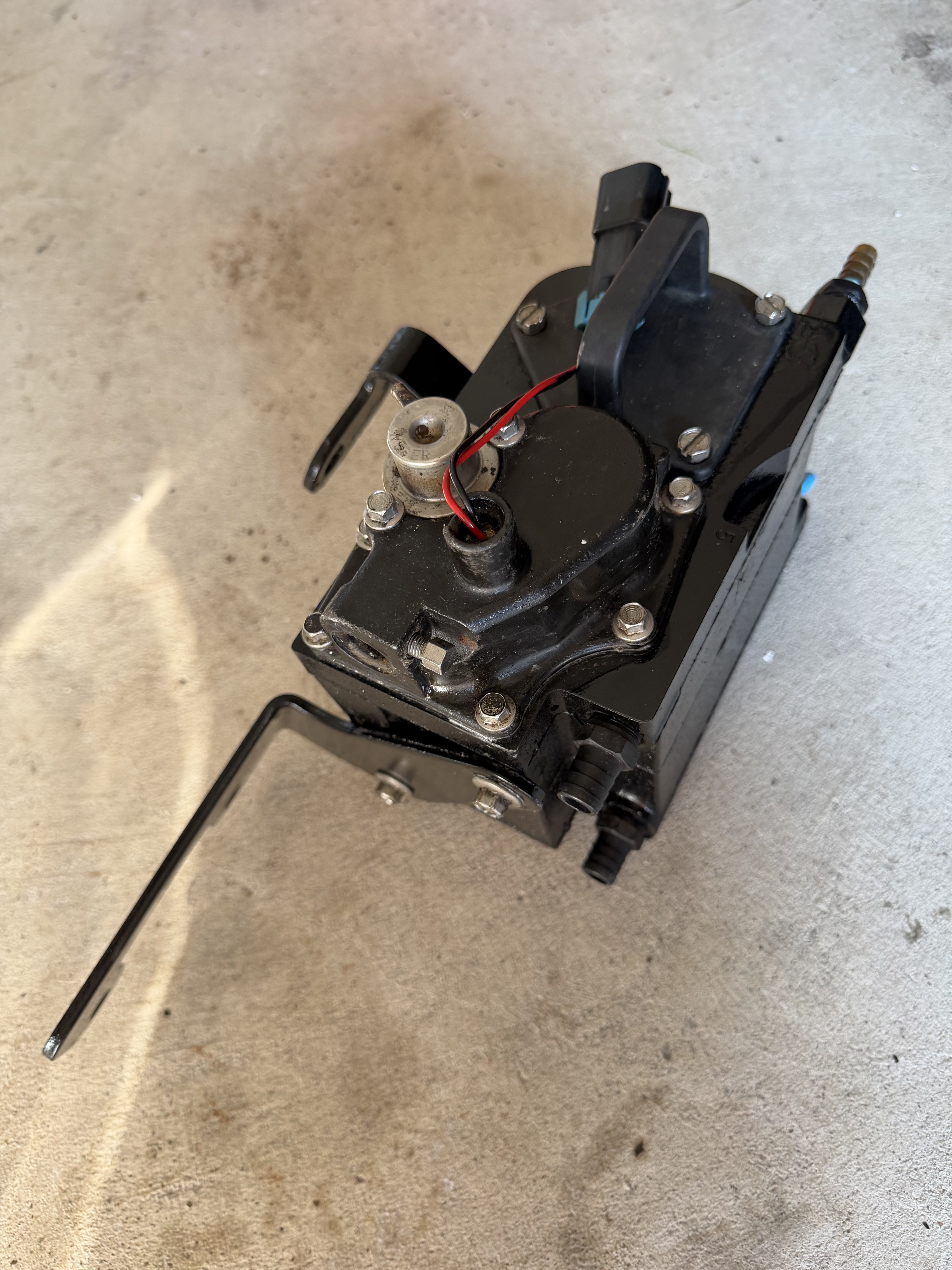

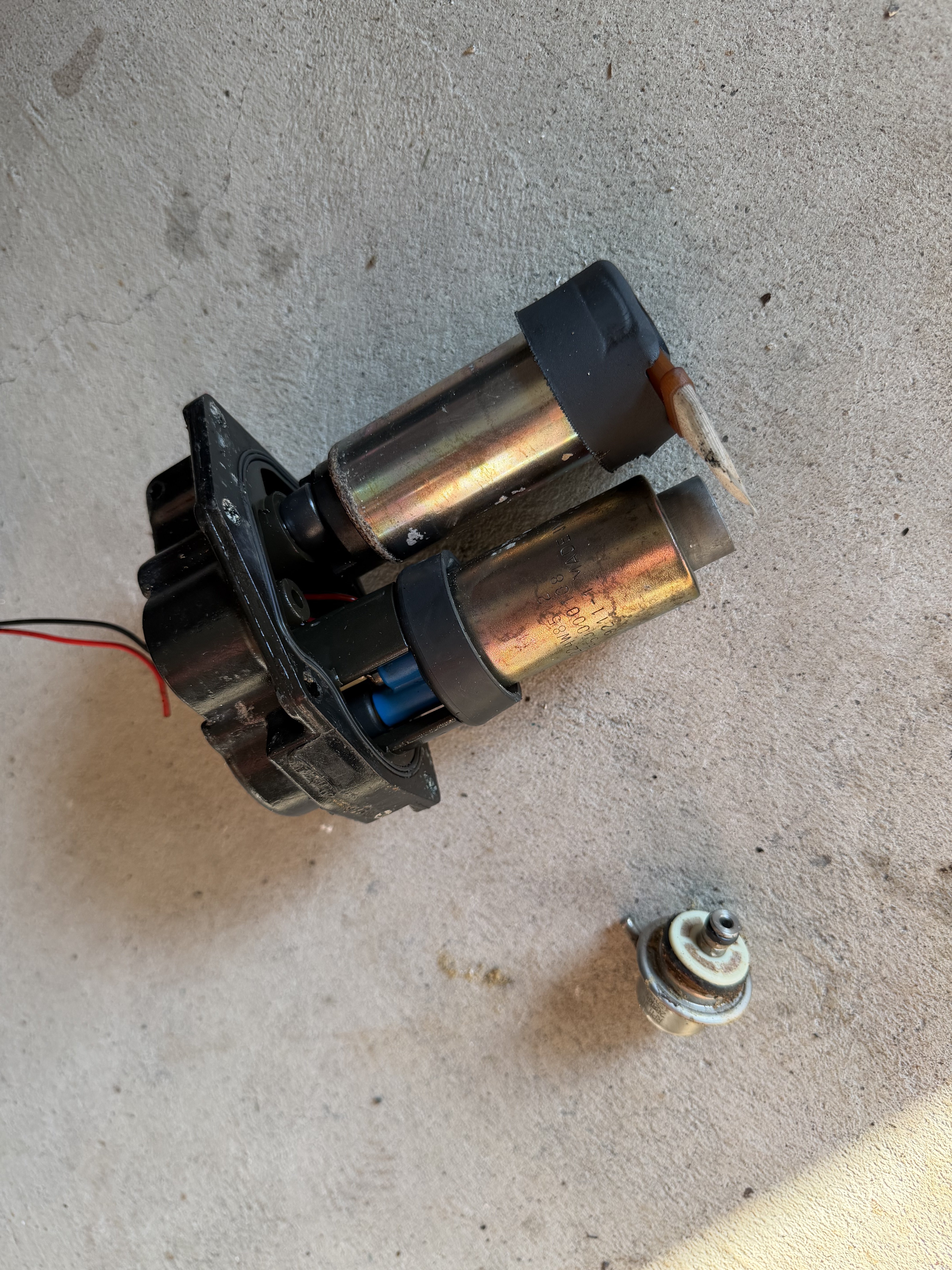

    Yeah. One of my modules was clean as a whistle. The other, not so much.



    Where did you source the regulator from @aero3113
    2006 390 EC
    2008 350 EC
    Georgian Bay
    · Share on Facebook
  • aero3113aero3113 Member Posts: 9,838 ✭✭✭✭✭

    I thought Marineengine.com but I definitely don’t pay this much. I think I actually found a seller on eBay selling new with the part number I needed. Be careful not to pinch the O-rings going back in, lube them up.

    https://www.marineengine.com/parts/mercury_marine_parts/sn/1A316620/4442077UU/13884_63


    2008 330EC
    · Share on Facebook
  • IanIan Member Posts: 3,062 ✭✭✭✭✭
    Something to read over winter too!

    Regards,

    Ian

    The Third “B”

    Ravena Coeymans Yacht Club

    https://www.rcyachtclub.com/

    · Share on Facebook
  • LaReaLaRea Member, Moderator Posts: 8,069 mod
    edited September 2
    Dude.  How long has this project been in progress?  You have been holding out on us.  Binge-watching ...
    · Share on Facebook
  • LaReaLaRea Member, Moderator Posts: 8,069 mod

    · Share on Facebook
  • Dream_InnDream_Inn Member, Moderator Posts: 7,945 mod
    LaRea said:
    Dude.  How long has this project been in progress?  You have been holding out on us.  Binge-watching ...
    If only you knew :smile:

    Dream 'Inn III -- 2008 400 Express

    · Share on Facebook
  • captkevincaptkevin Member Posts: 561 ✭✭✭
    We bought our lake house 13 years ago. Figured we would have rehab done in 2 years. 13 years later there is still a list of things to be done.
    2004 232
    2021 Yamaha Fx svho
    · Share on Facebook
  • YYZRCYYZRC Member Posts: 5,461 ✭✭✭✭✭
    @LaRea if not for John's input, I don't think this show would be on the air!
    2006 390 EC
    2008 350 EC
    Georgian Bay
    · Share on Facebook
  • YYZRCYYZRC Member Posts: 5,461 ✭✭✭✭✭

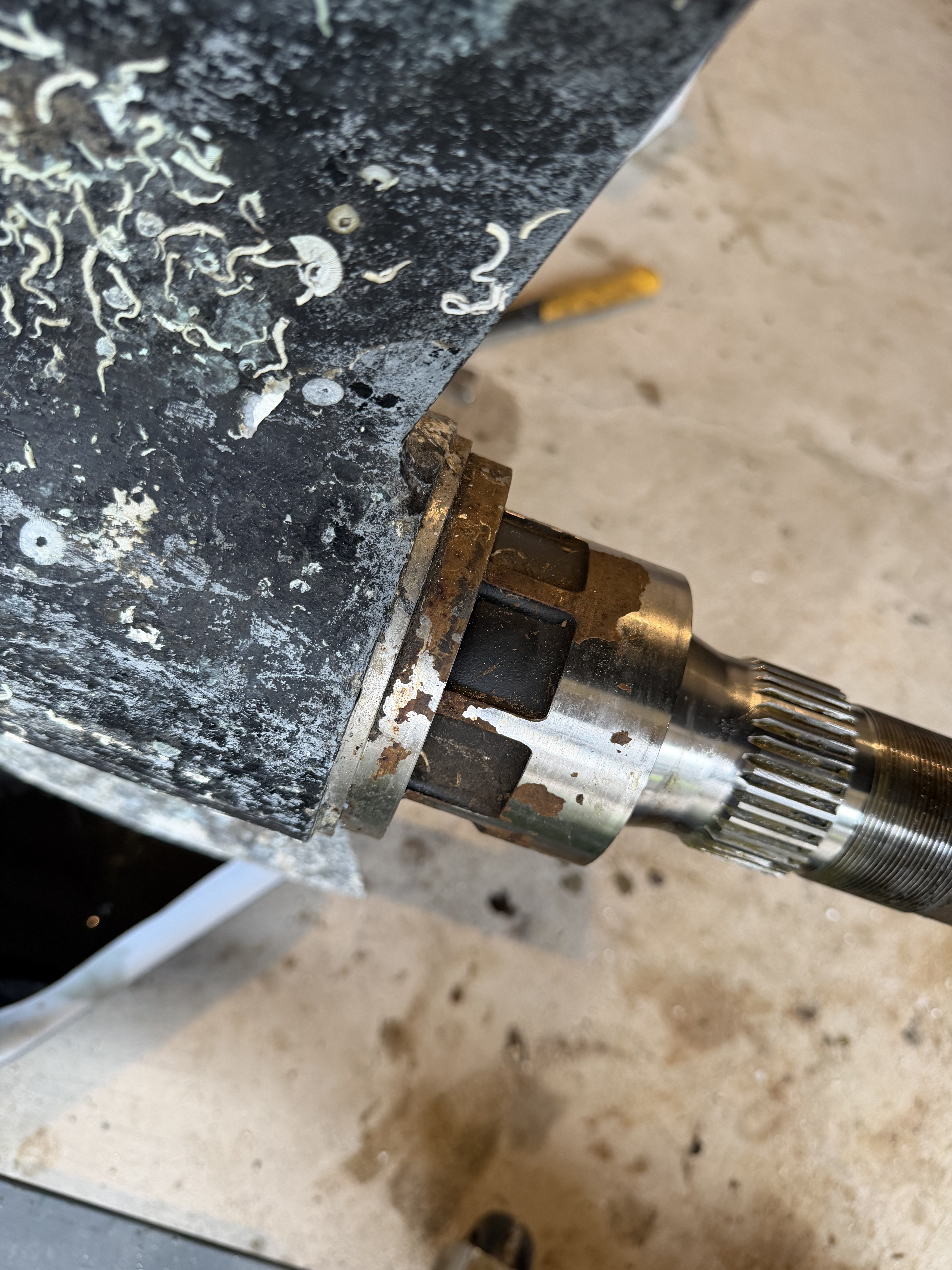

    Drive oil not too bad all things considered!



    Upgraded stainless bearing carriers is nice


    2006 390 EC
    2008 350 EC
    Georgian Bay
    · Share on Facebook
  • YYZRCYYZRC Member Posts: 5,461 ✭✭✭✭✭
    edited September 2

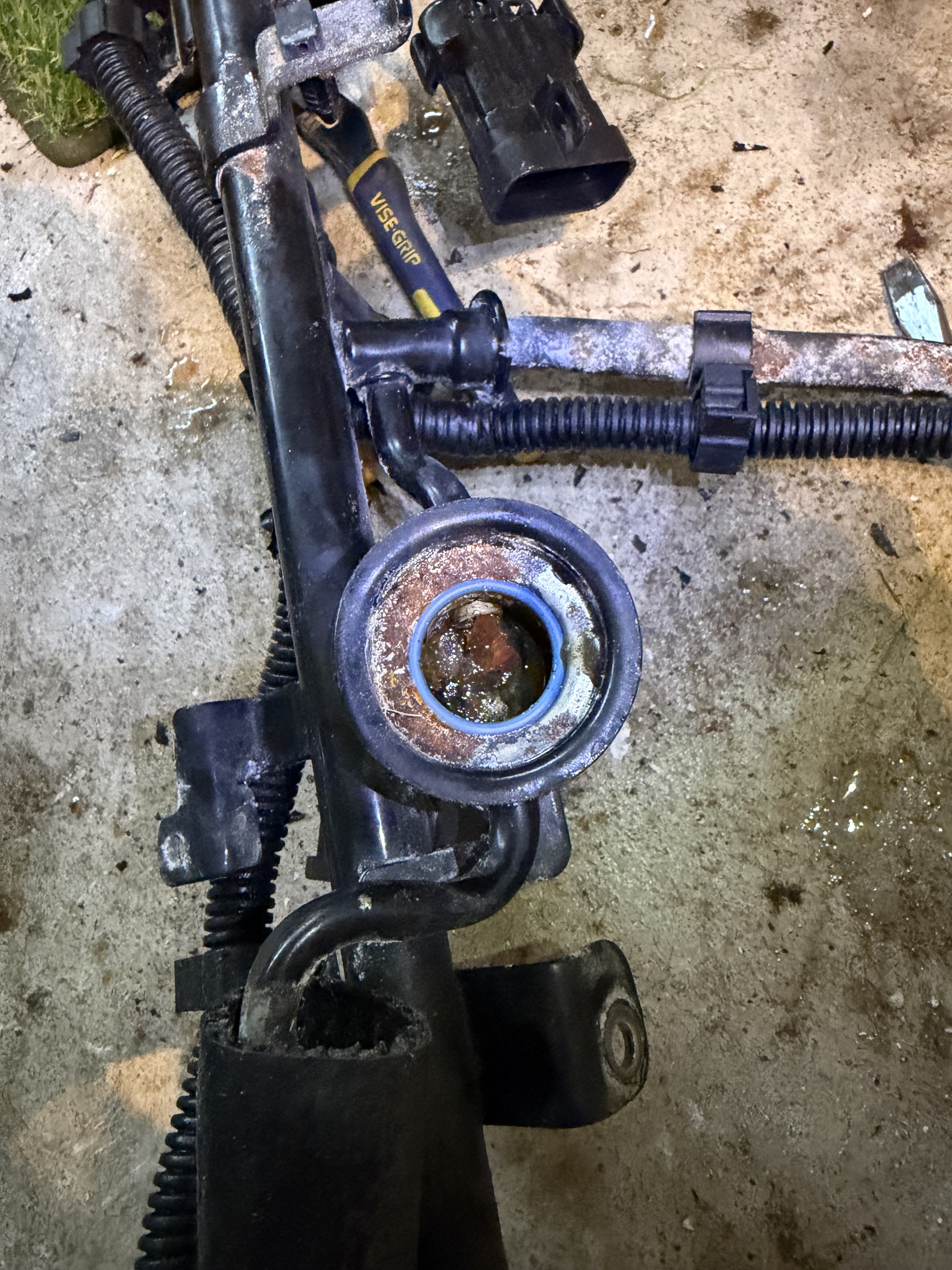

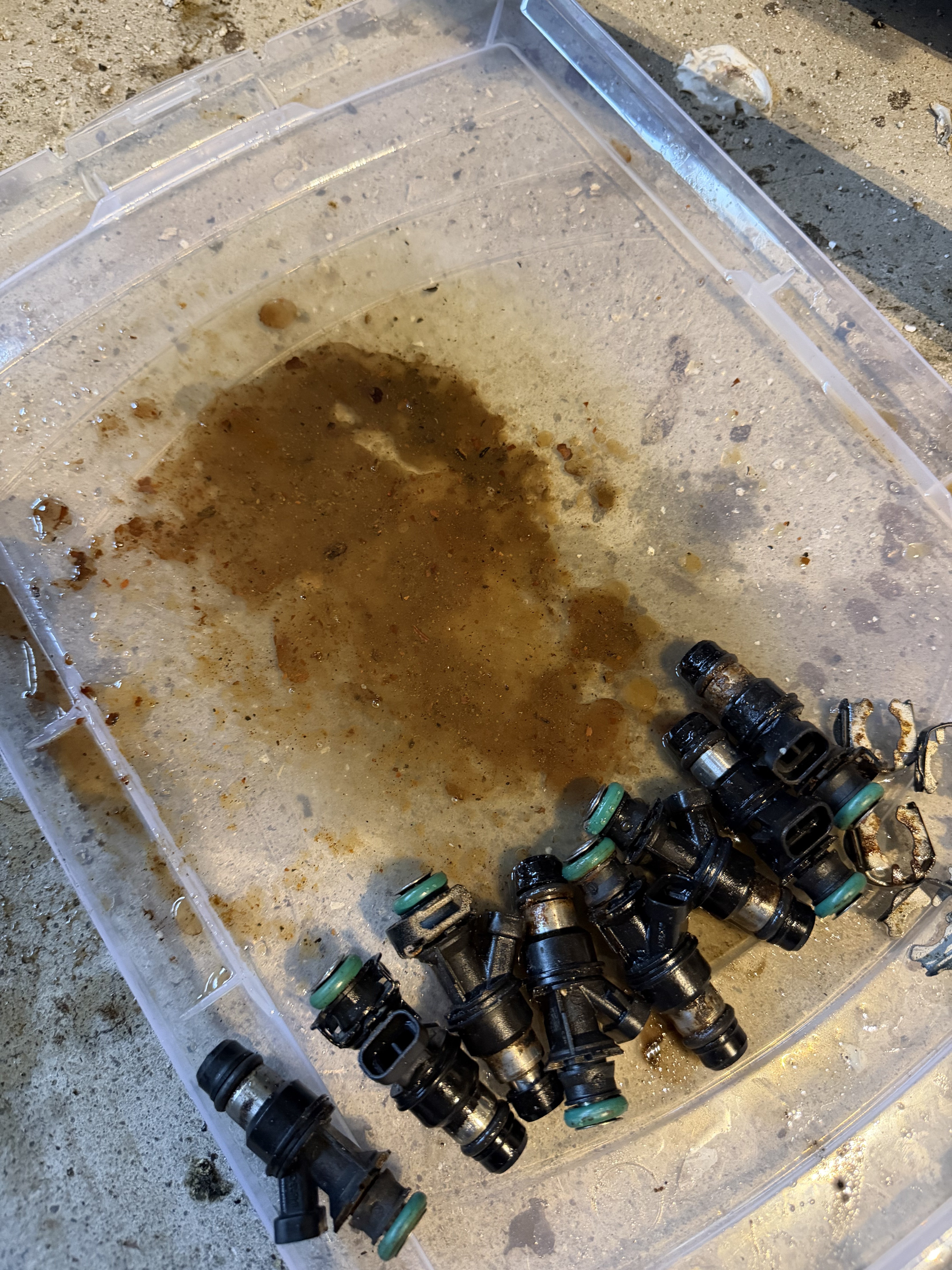

    Maybe you’ve thought to yourself “I wonder what’s going on in my fuel rails?”

    This is what was going on in mine. NSFW.

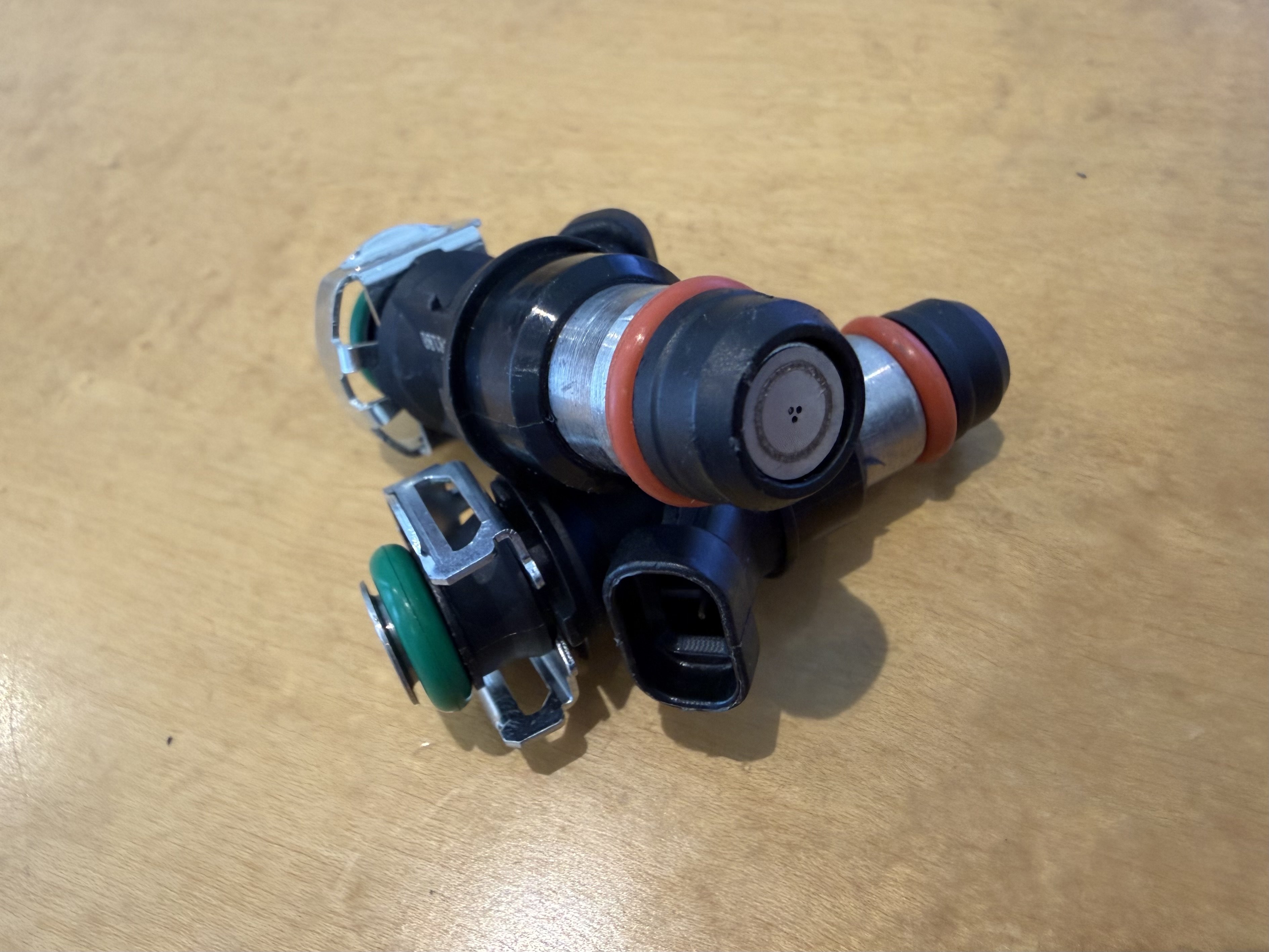

    Rolling the dice on some new China injectors.


    2006 390 EC
    2008 350 EC
    Georgian Bay
    · Share on Facebook
  • FormulabenFormulaben Confirm Email, Member Posts: 223 ✭✭✭
    Can't wait to hear how it runs after this...injector cleaning or replacement is on my list this winter.
    2006 Fiesta Vee 270
    · Share on Facebook
  • YYZRCYYZRC Member Posts: 5,461 ✭✭✭✭✭

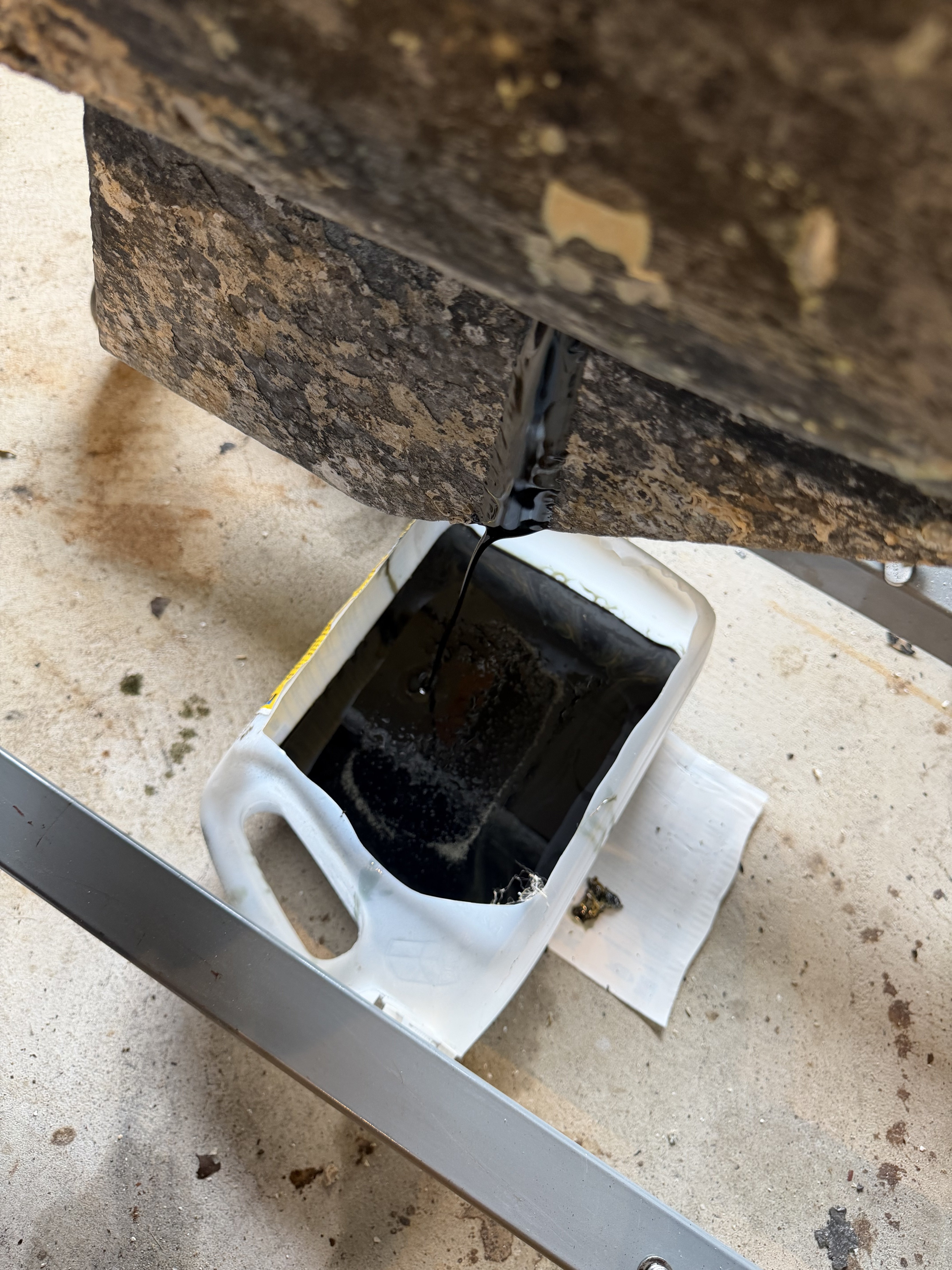

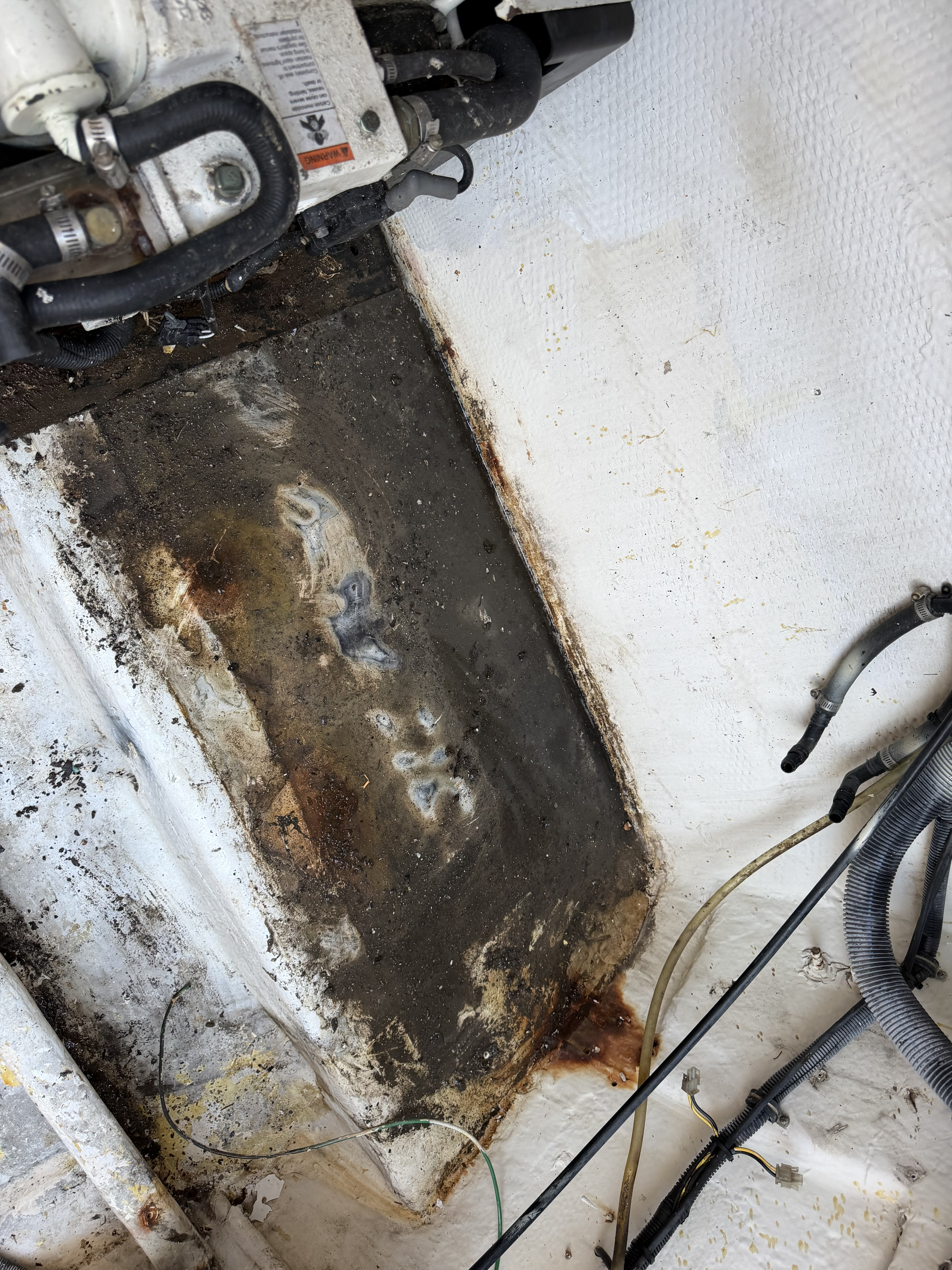

    Generator pan is completely rotten. Both sides of the bilge hold water (they don’t slope to the center). Really poor design.

    Anyway, new pan on the way.



    Getting ready for paint.


    2006 390 EC
    2008 350 EC
    Georgian Bay
    · Share on Facebook
  • YYZRCYYZRC Member Posts: 5,461 ✭✭✭✭✭

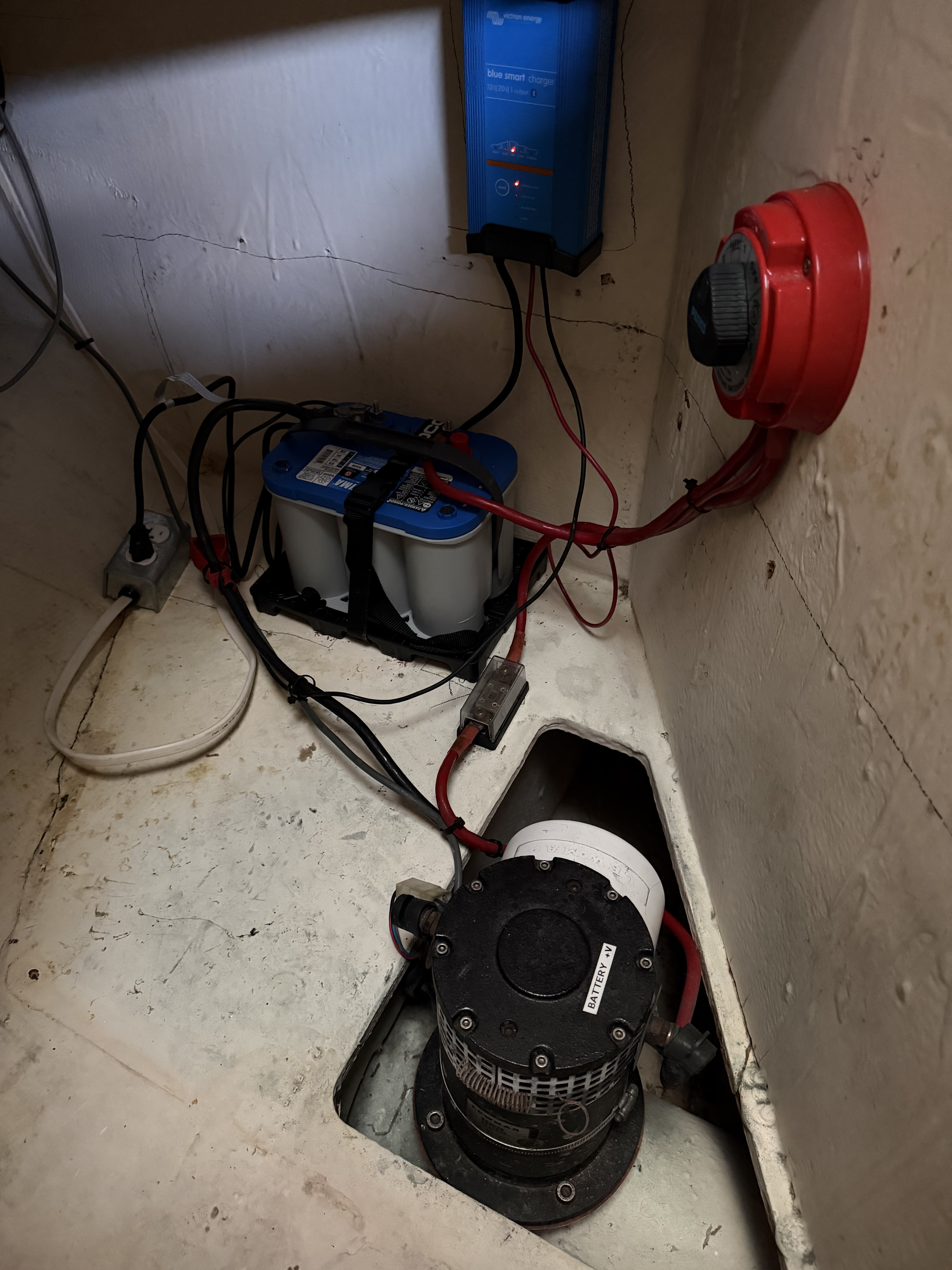

    Bow thruster new battery, new charger, works!!


    2006 390 EC
    2008 350 EC
    Georgian Bay
    · Share on Facebook
  • YYZRCYYZRC Member Posts: 5,461 ✭✭✭✭✭
    @Dream_Inn or @LaRea any chance you have a wiring diagram?
    2006 390 EC
    2008 350 EC
    Georgian Bay
    · Share on Facebook
  • LaReaLaRea Member, Moderator Posts: 8,069 mod
    edited September 5
    I never found schematics for the 370.  Here's the package for the 342 in case that helps.
    [edit - it's not letting me upload files.]
    · Share on Facebook
  • Dream_InnDream_Inn Member, Moderator Posts: 7,945 mod
    I don’t have any wire schematics either.

    Dream 'Inn III -- 2008 400 Express

    · Share on Facebook
  • YYZRCYYZRC Member Posts: 5,461 ✭✭✭✭✭
    I have the 342 thanks. Too bad nothing for the newer boats.
    2006 390 EC
    2008 350 EC
    Georgian Bay
    · Share on Facebook
  • YYZRCYYZRC Member Posts: 5,461 ✭✭✭✭✭

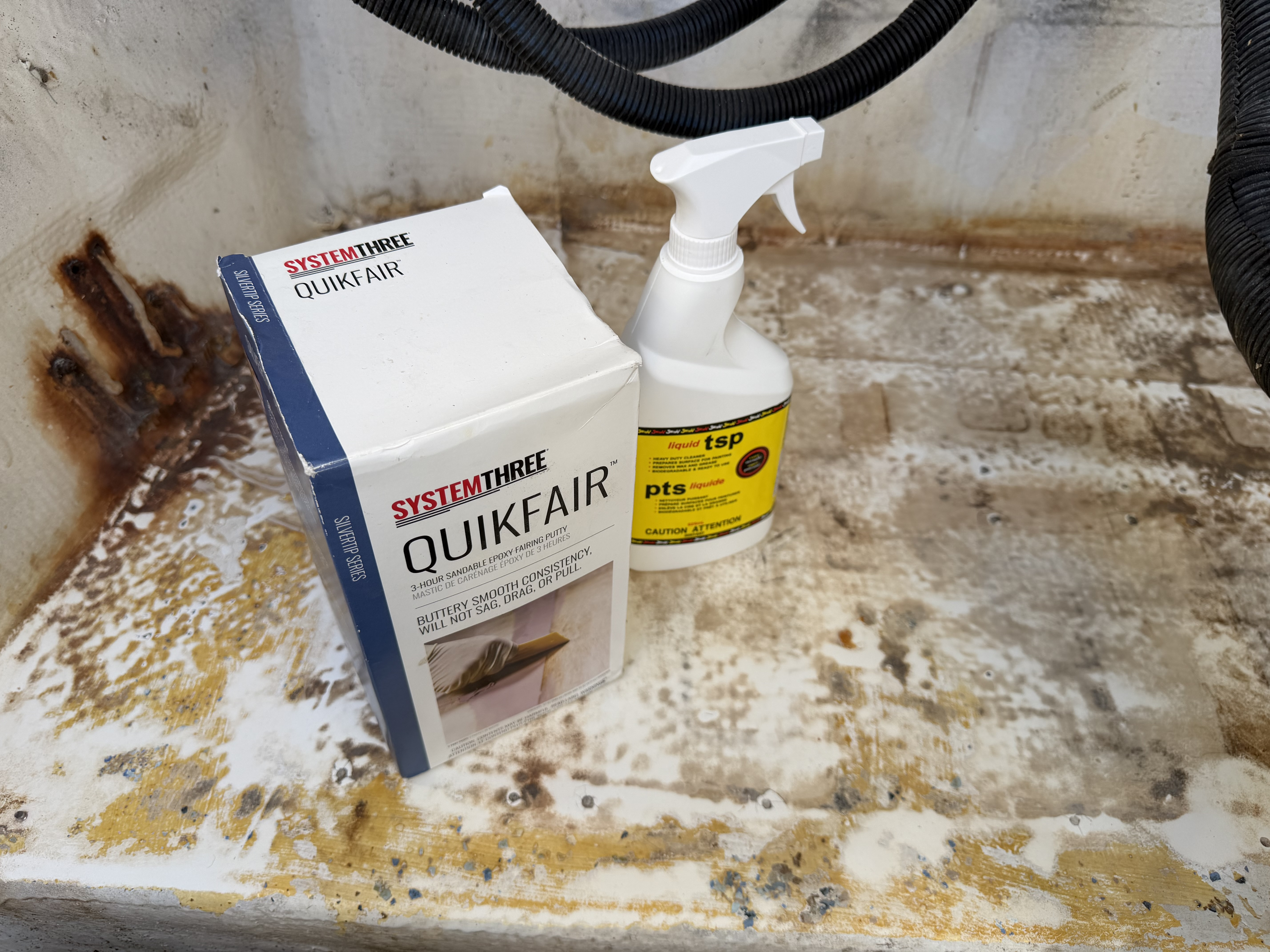

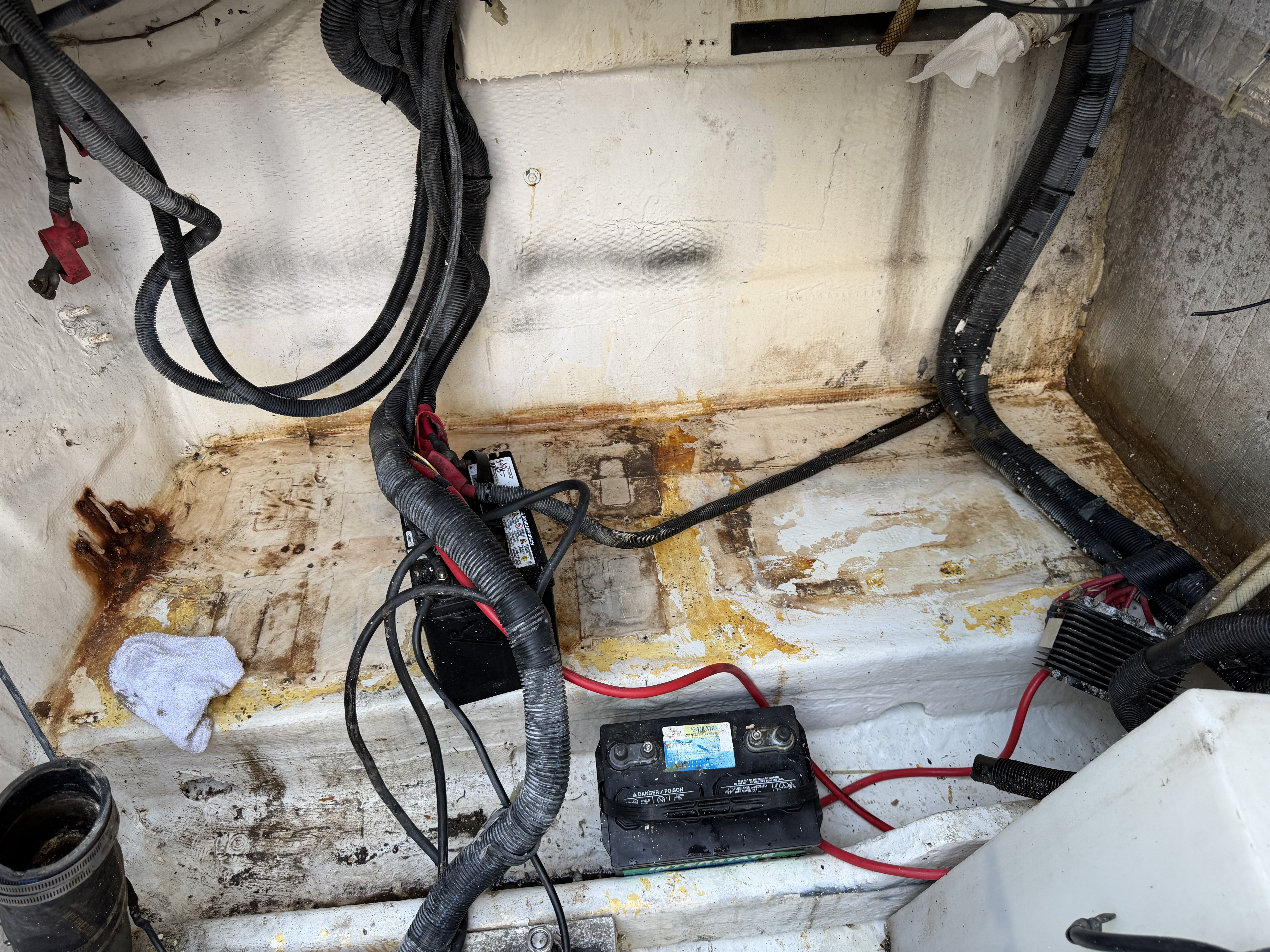

    Sanded and cleaned with TSP.

    Filled in low spots with Quikfair.


    2006 390 EC
    2008 350 EC
    Georgian Bay
    · Share on Facebook
  • YYZRCYYZRC Member Posts: 5,461 ✭✭✭✭✭

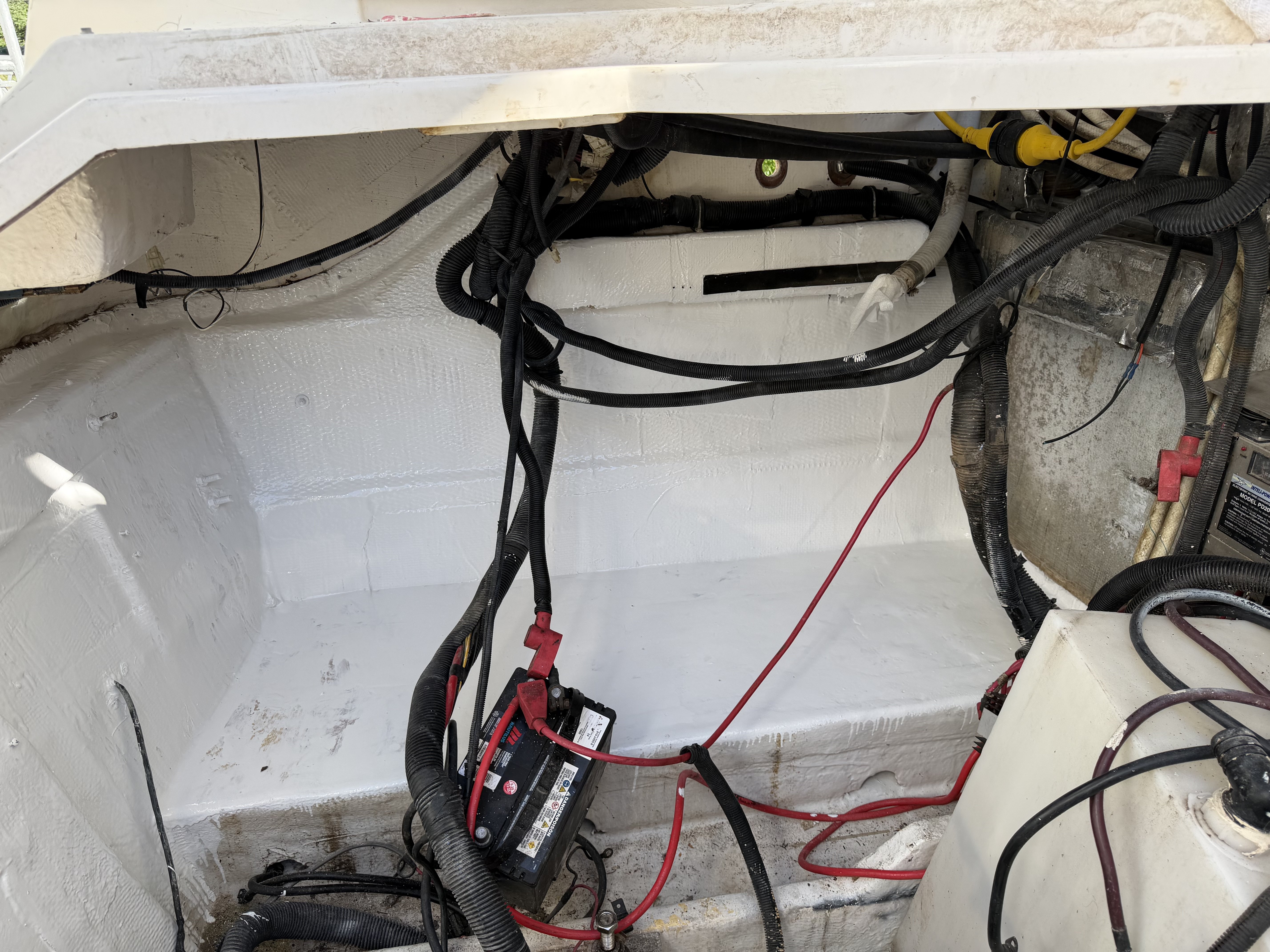

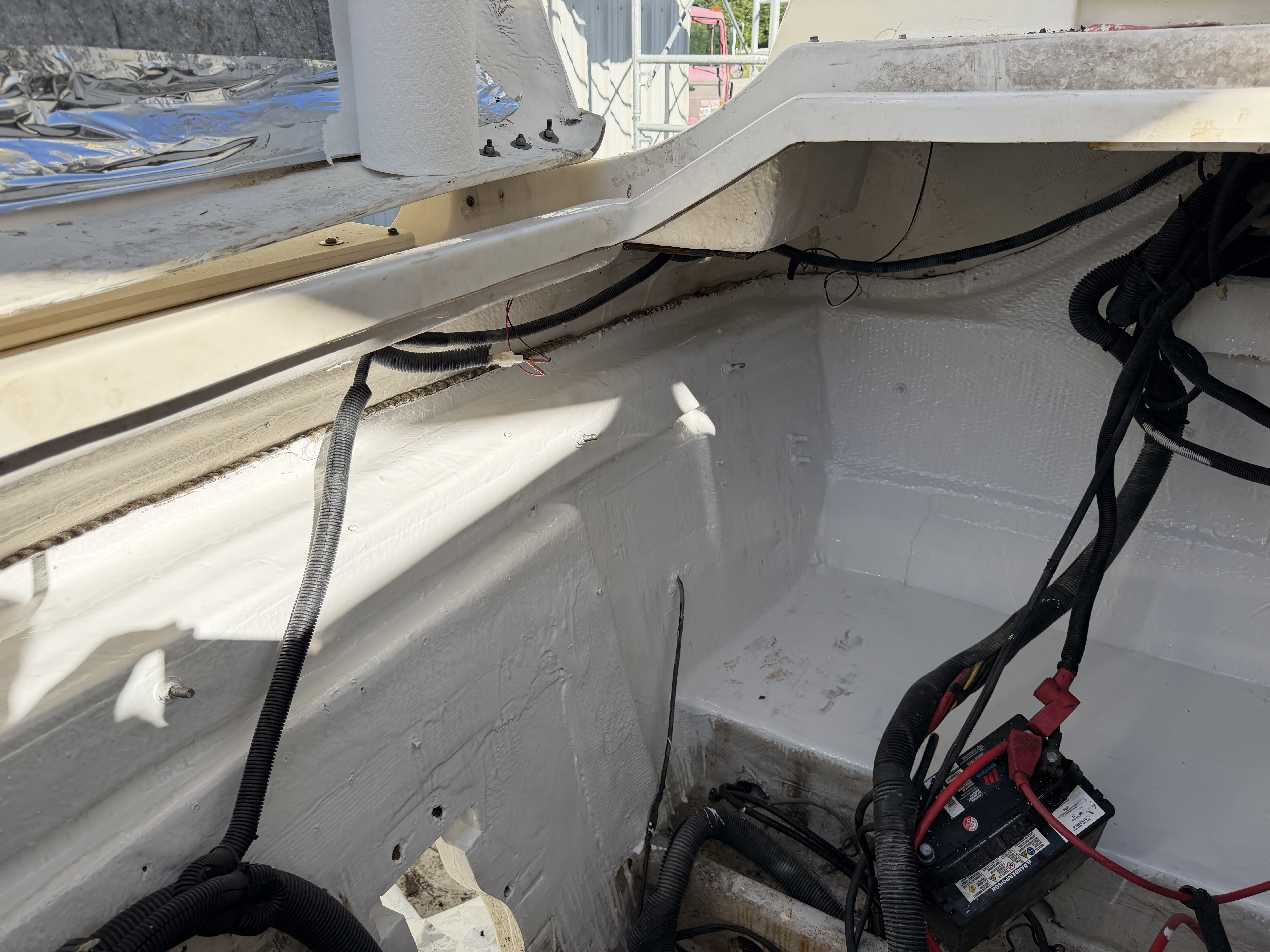

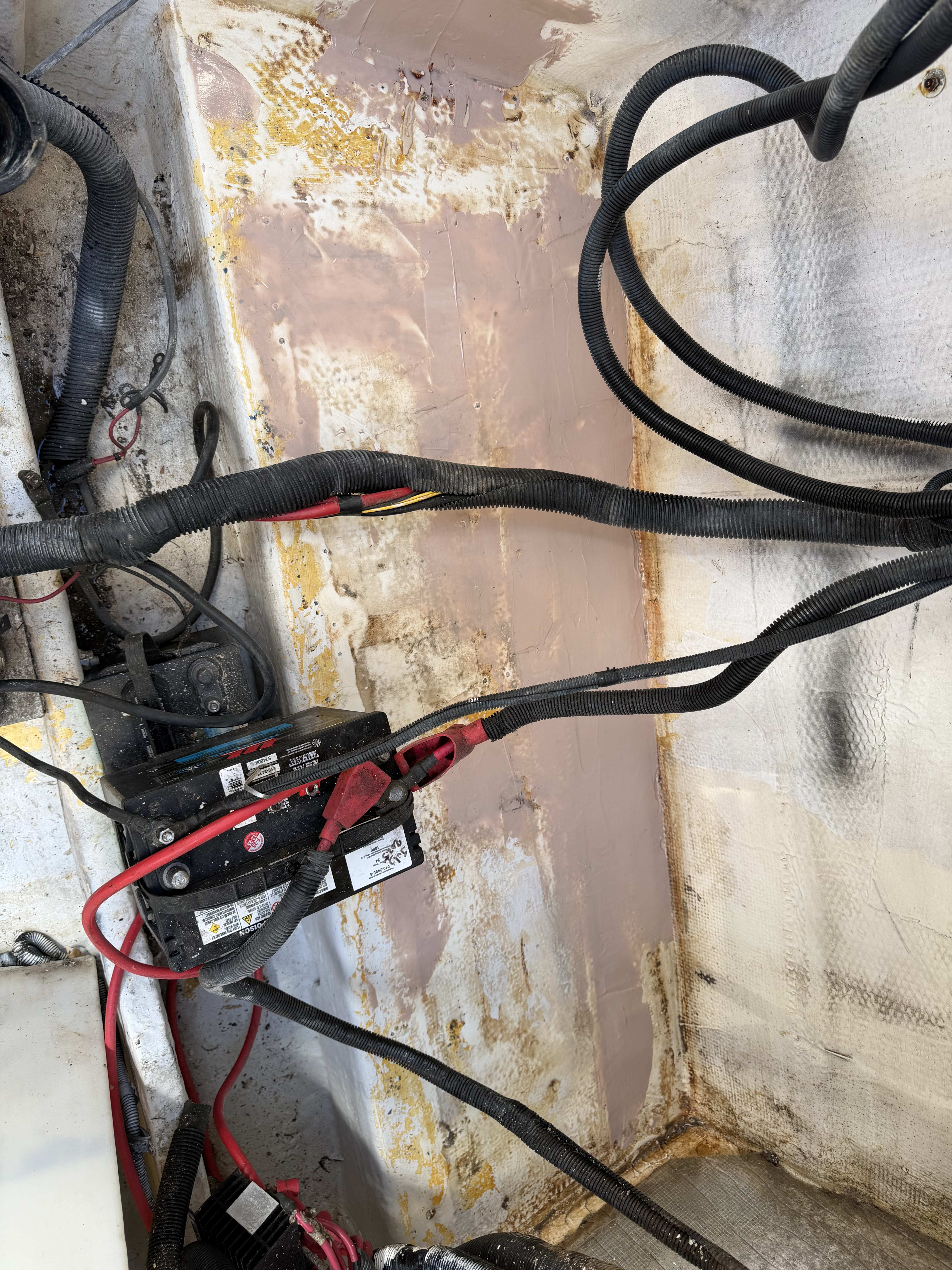

    First coat on. Kinda like shaving your chest… where do you stop?


    2006 390 EC
    2008 350 EC
    Georgian Bay
    · Share on Facebook
  • YYZRCYYZRC Member Posts: 5,461 ✭✭✭✭✭

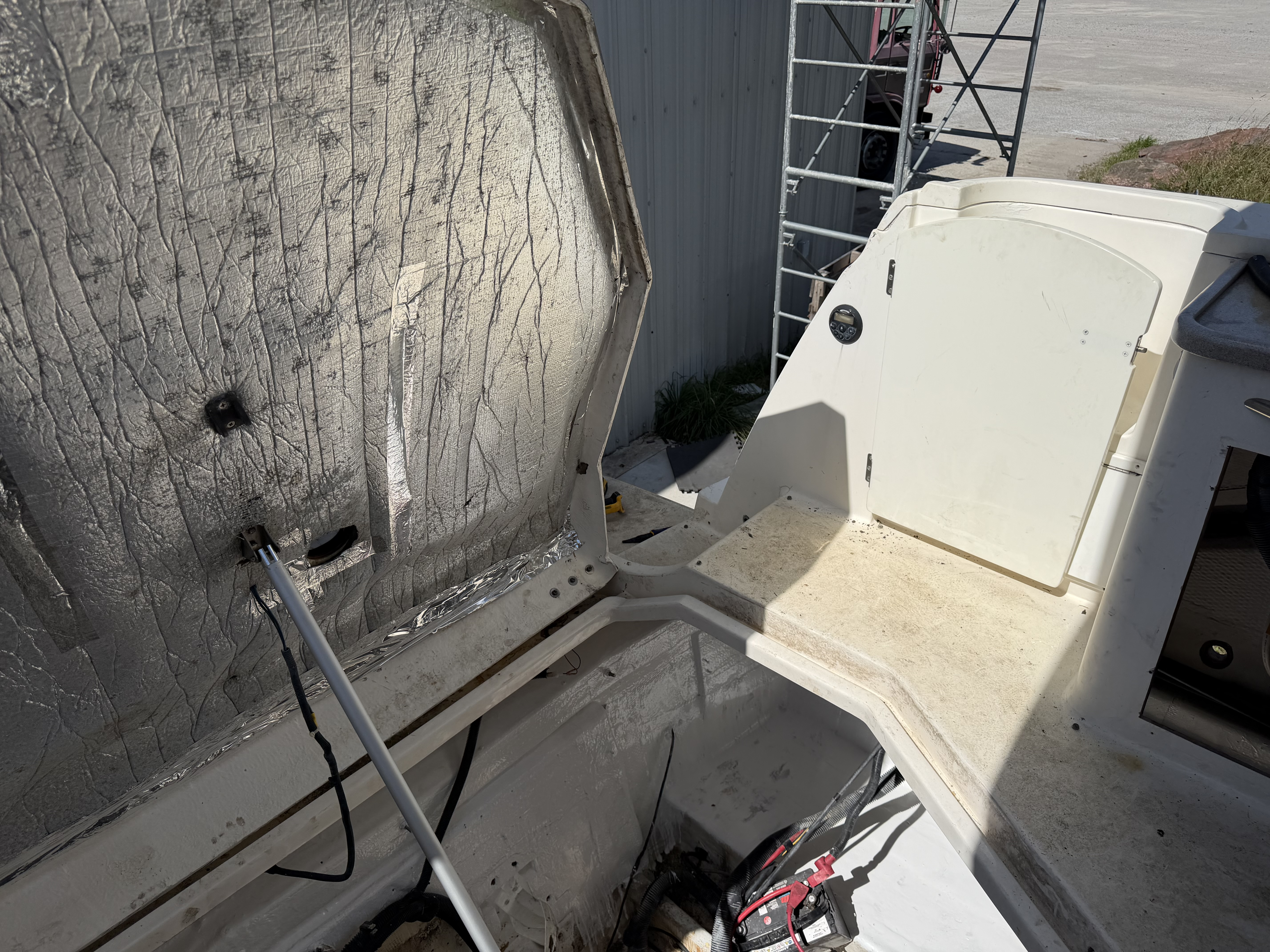

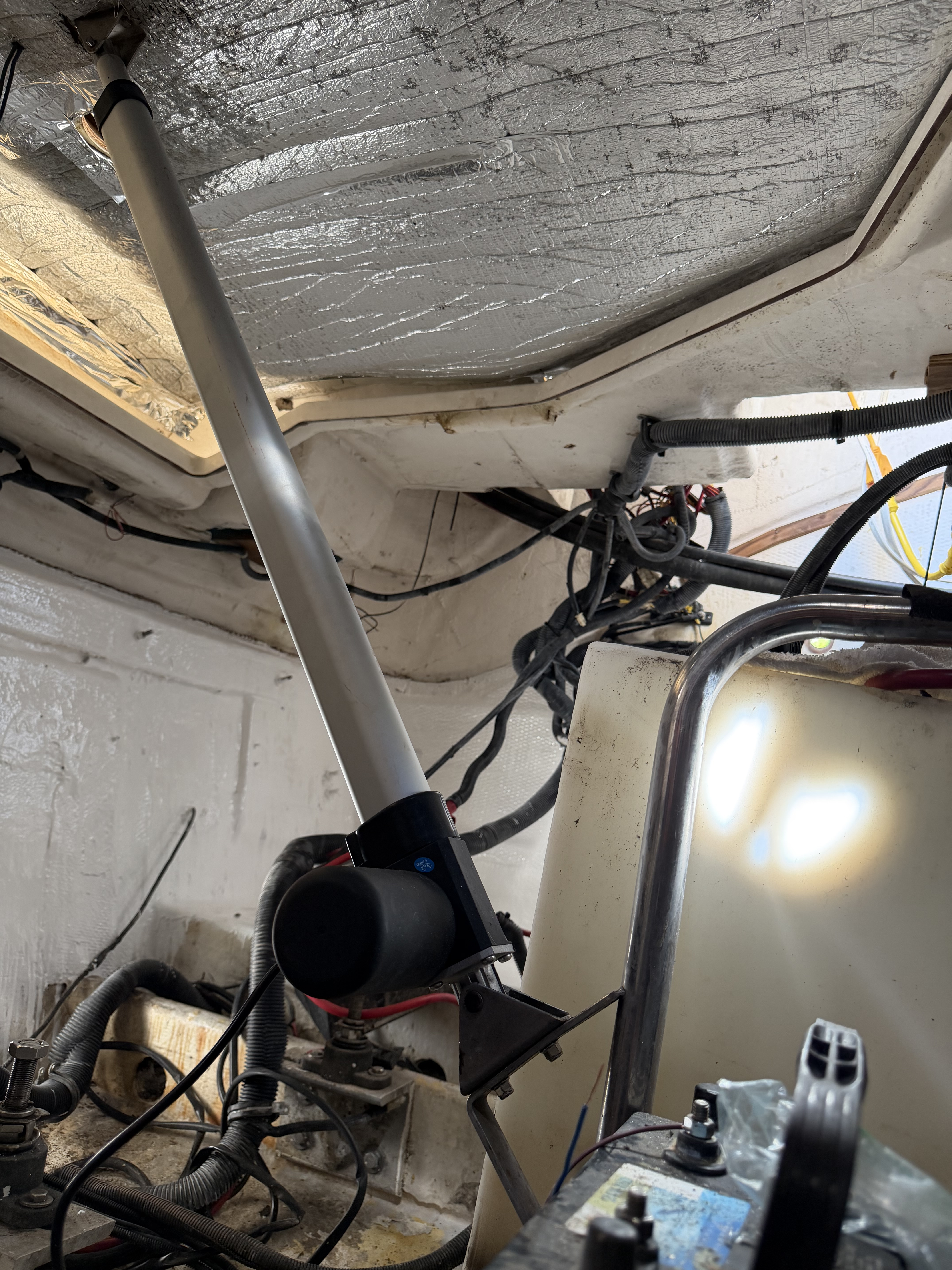

    I installed a Progressive Automations 30” stroke hatch actuator. Couldn’t have worked more perfectly. Hatch opens almost vertical using the OEM mounting points.


    2006 390 EC
    2008 350 EC
    Georgian Bay
    · Share on Facebook
  • YYZRCYYZRC Member Posts: 5,461 ✭✭✭✭✭

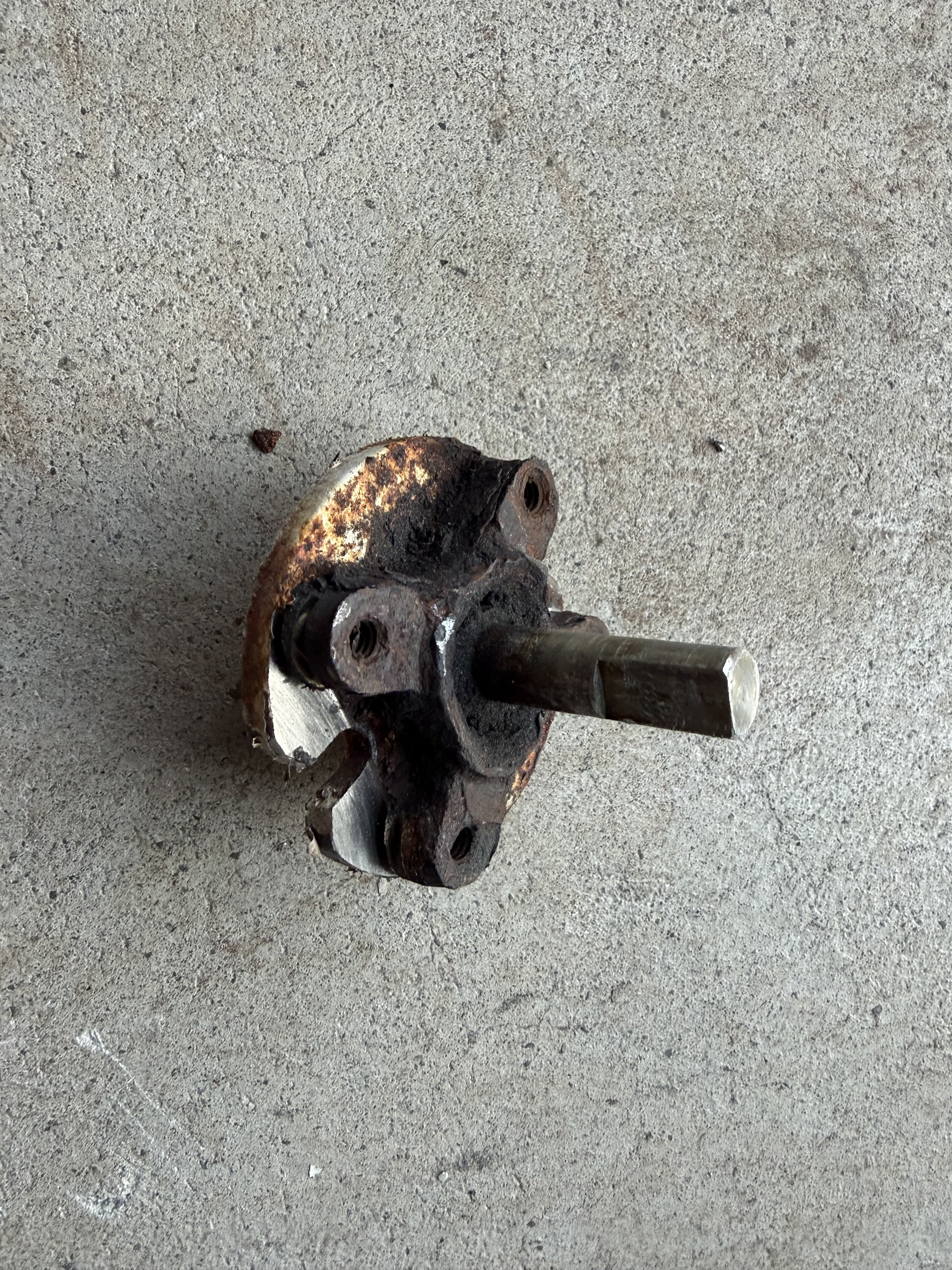

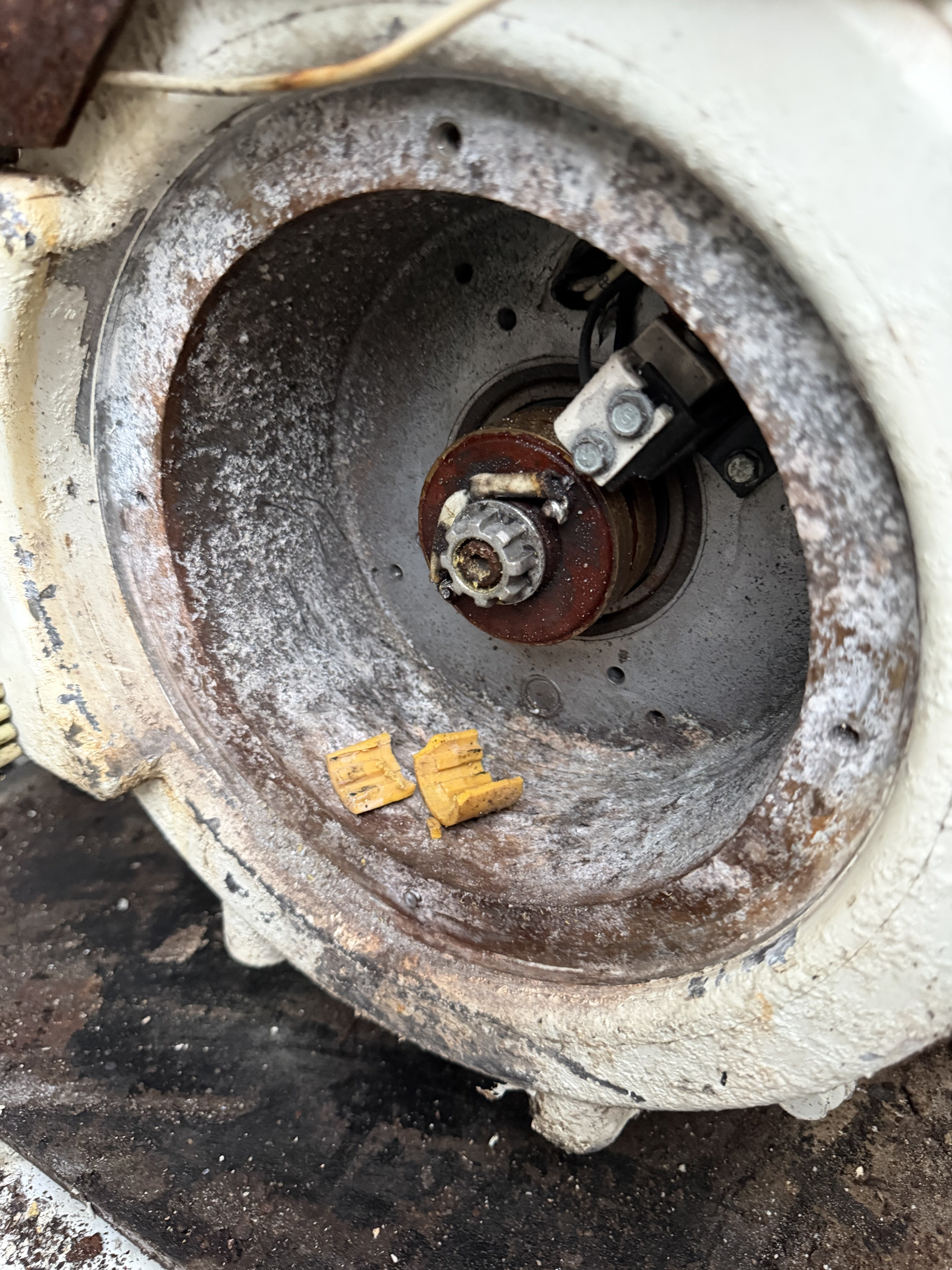

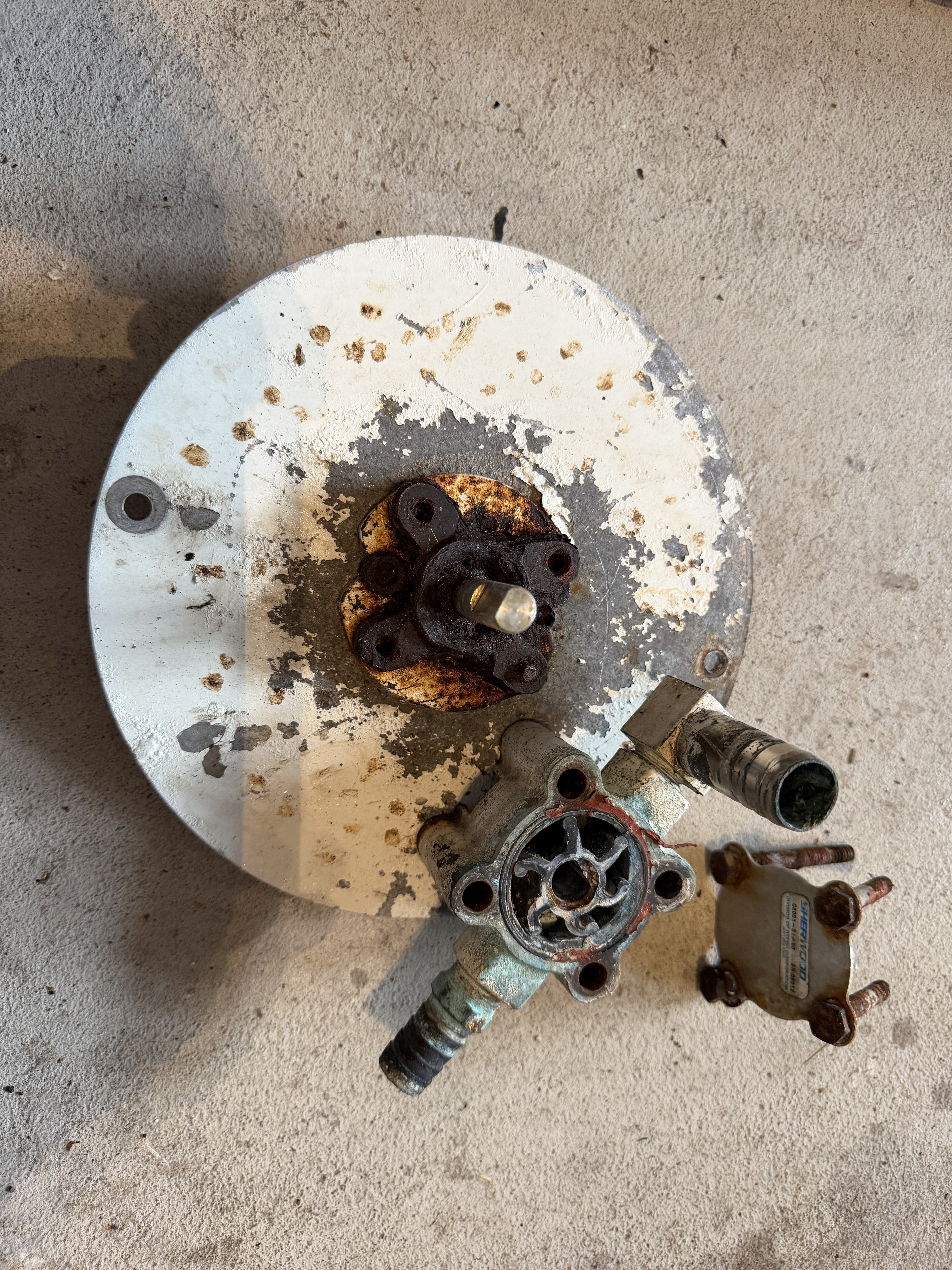

    Started messing with the Kohler. I think I can get it to go.

    New sea water pump assembly on the way. Plus new plugs, coupler, fuel and oil filters.


    2006 390 EC
    2008 350 EC
    Georgian Bay
    · Share on Facebook
